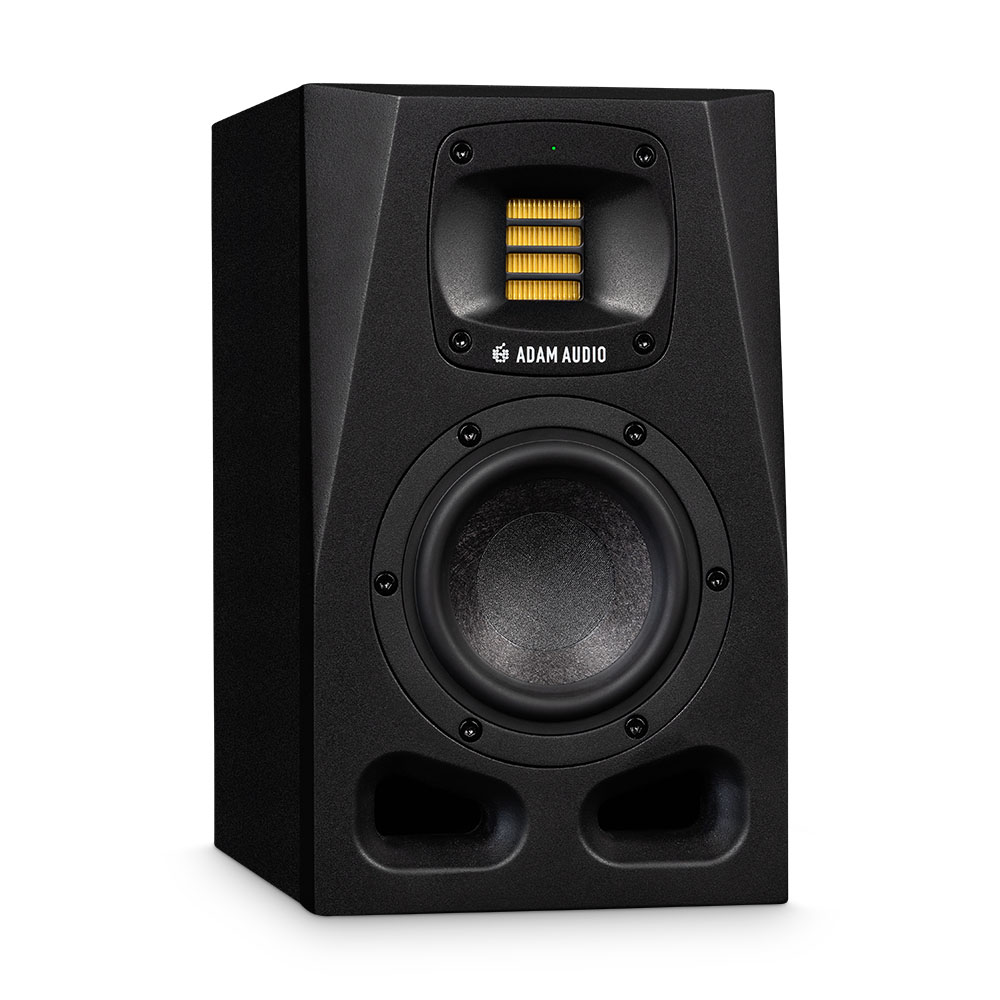

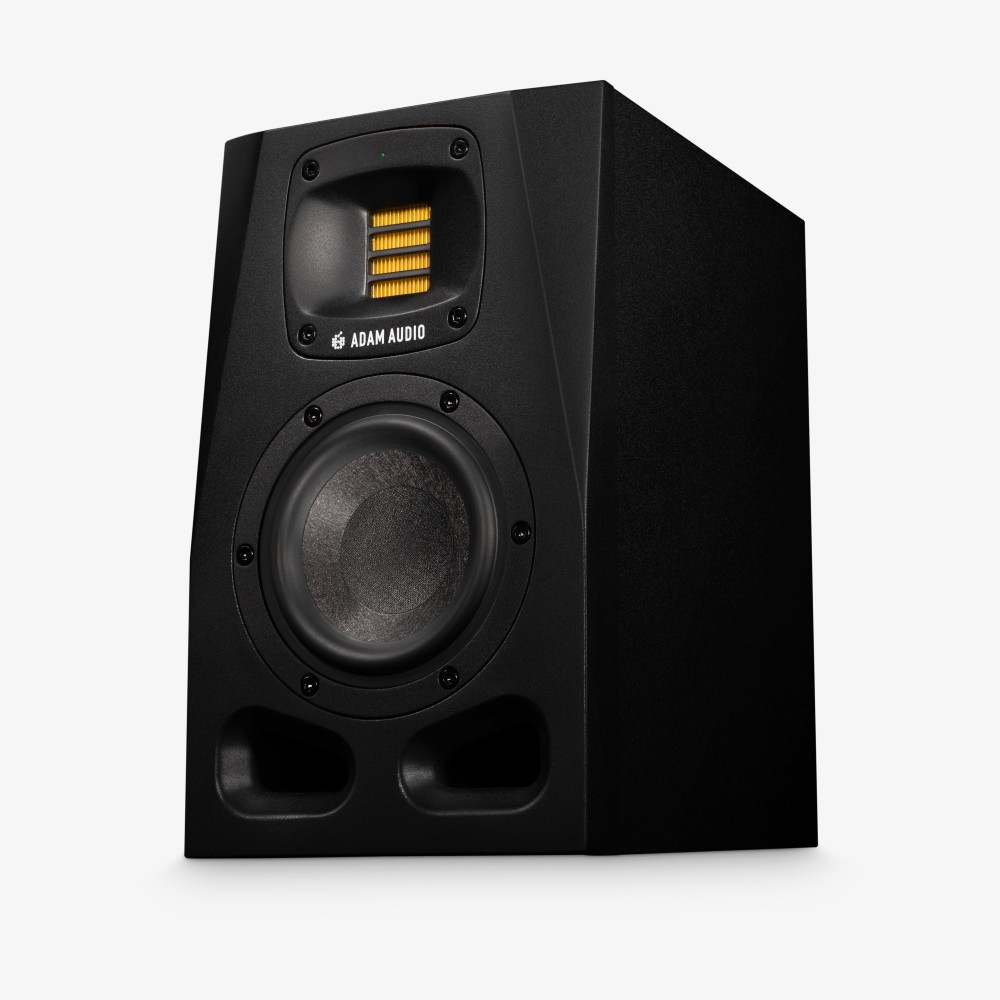

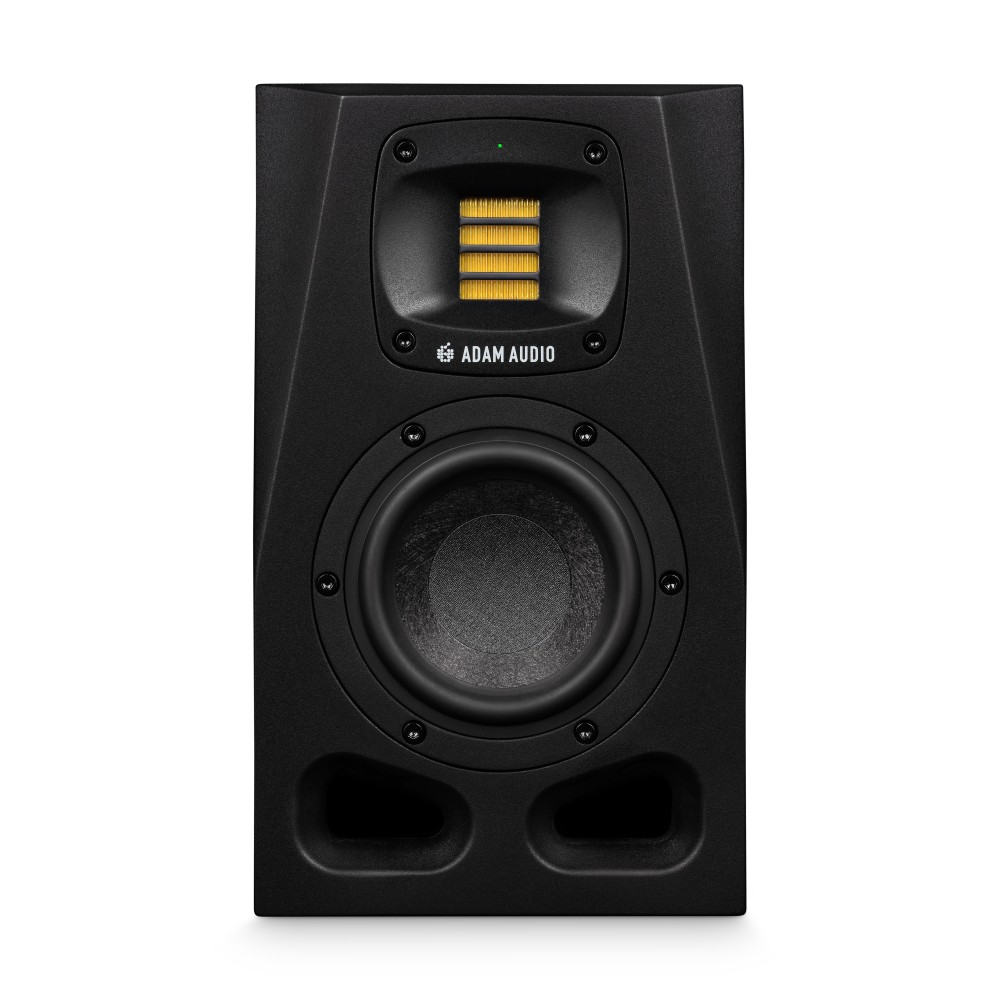

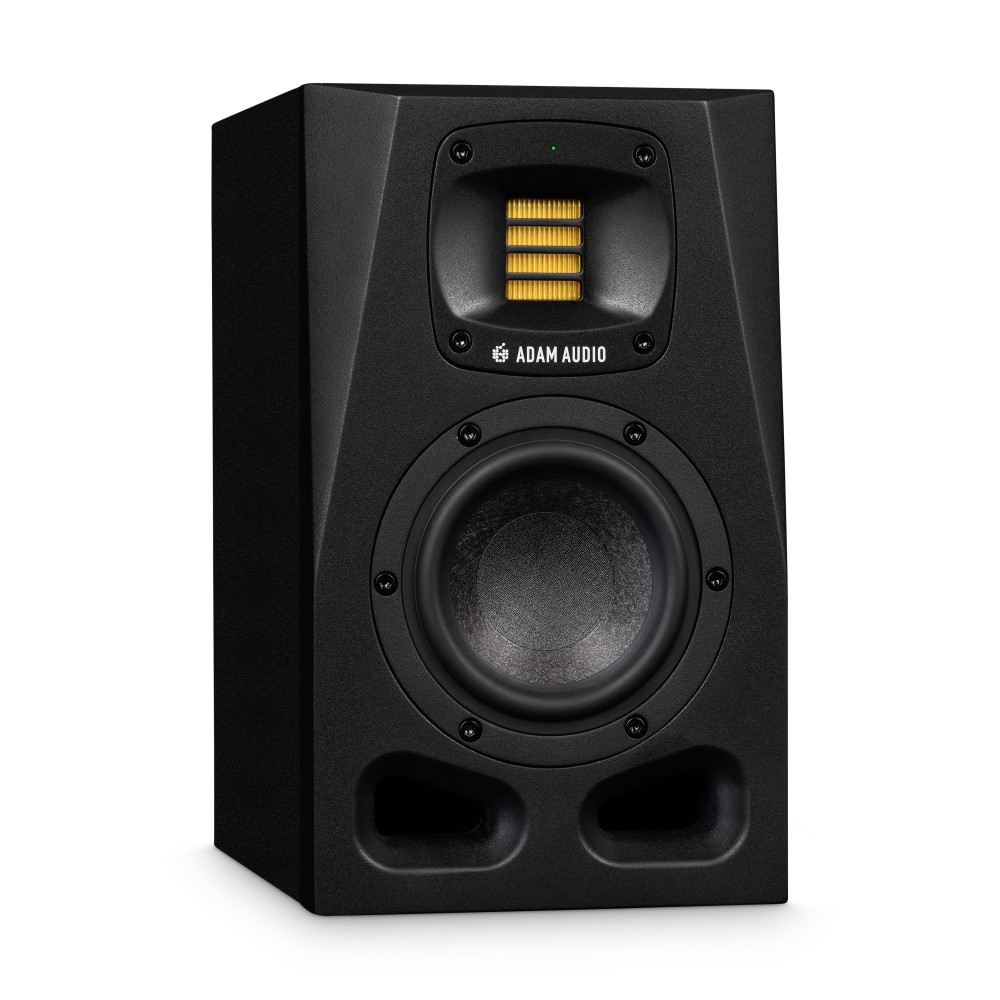

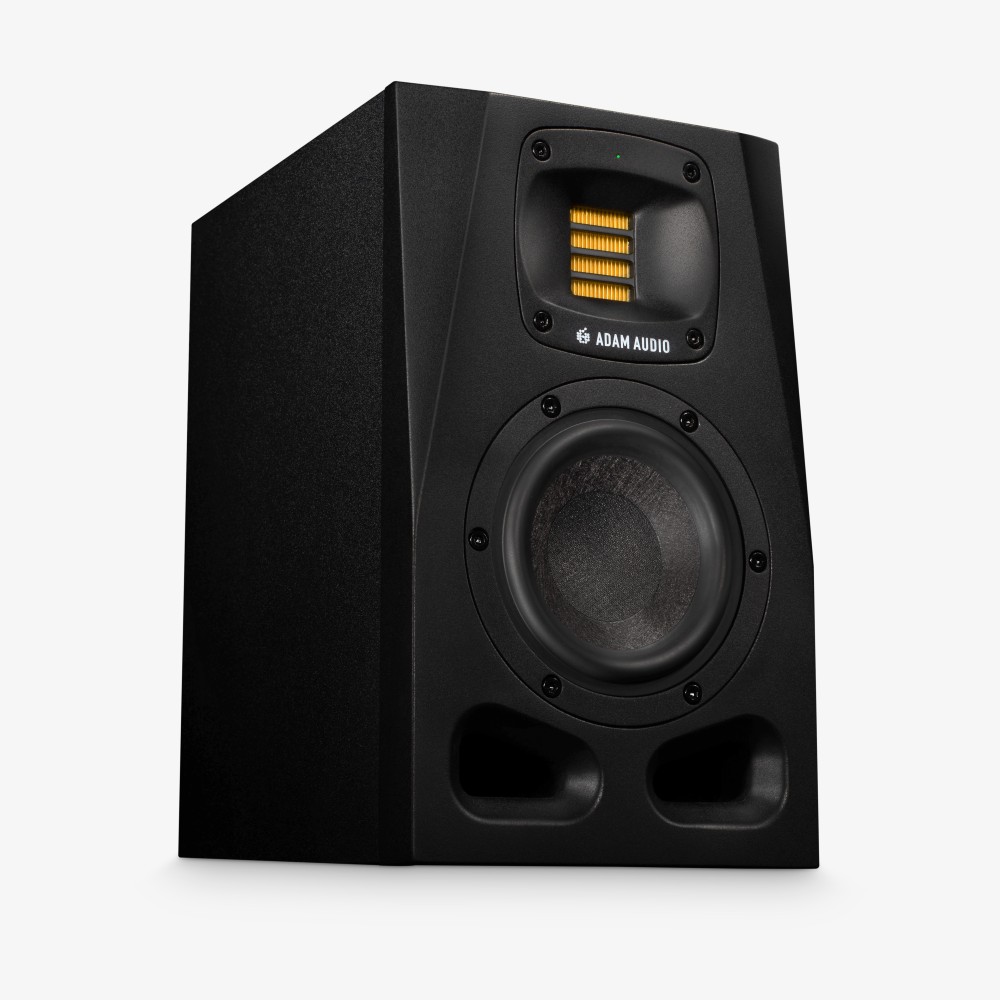

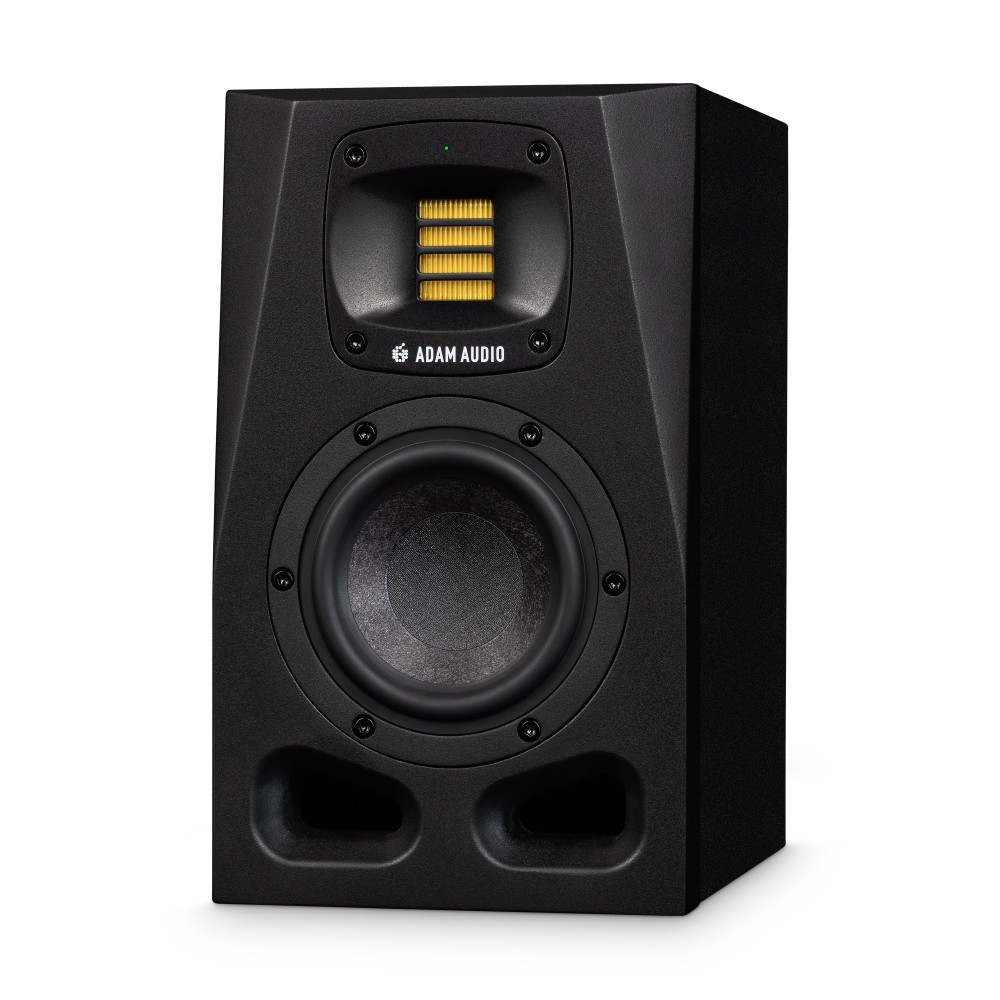

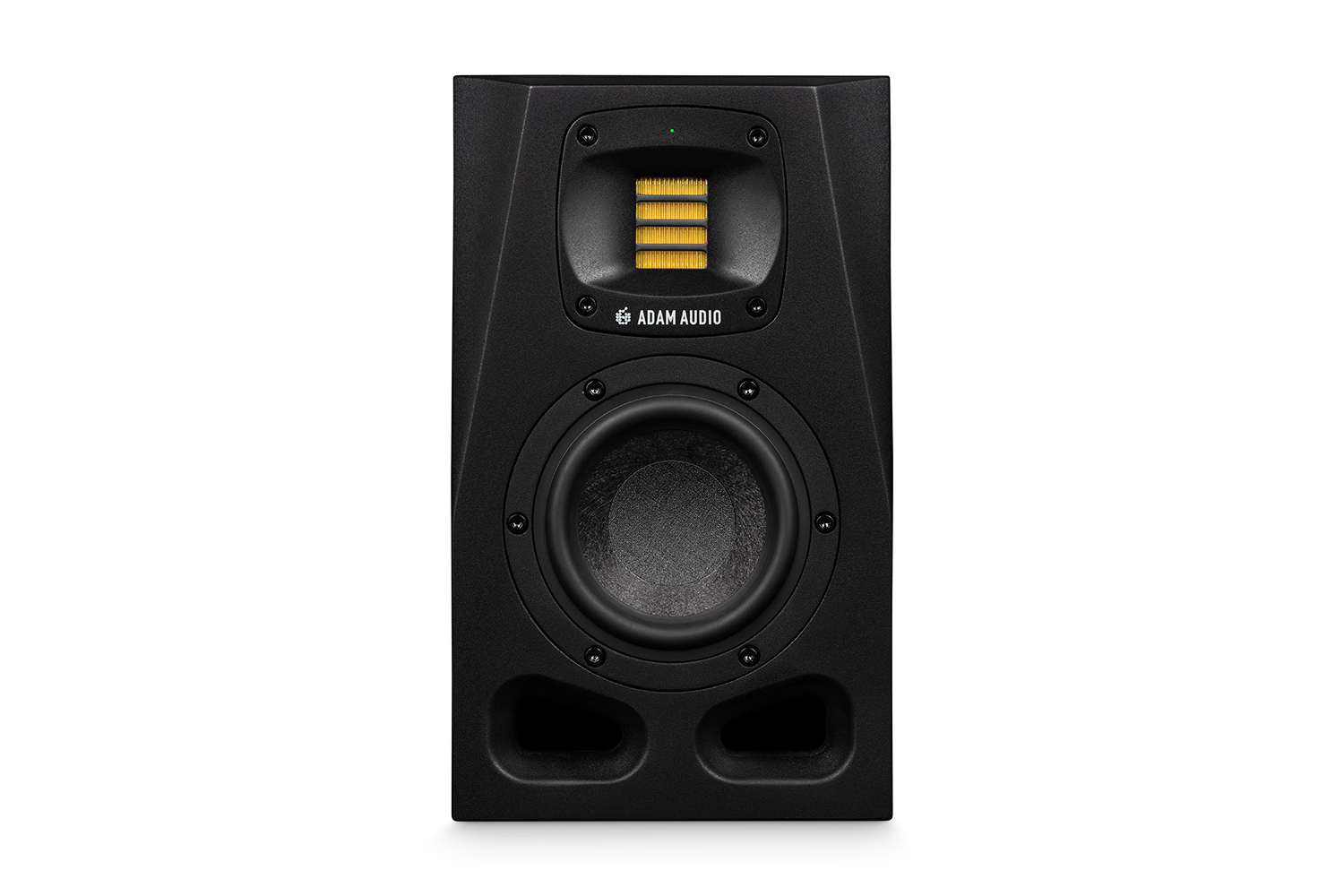

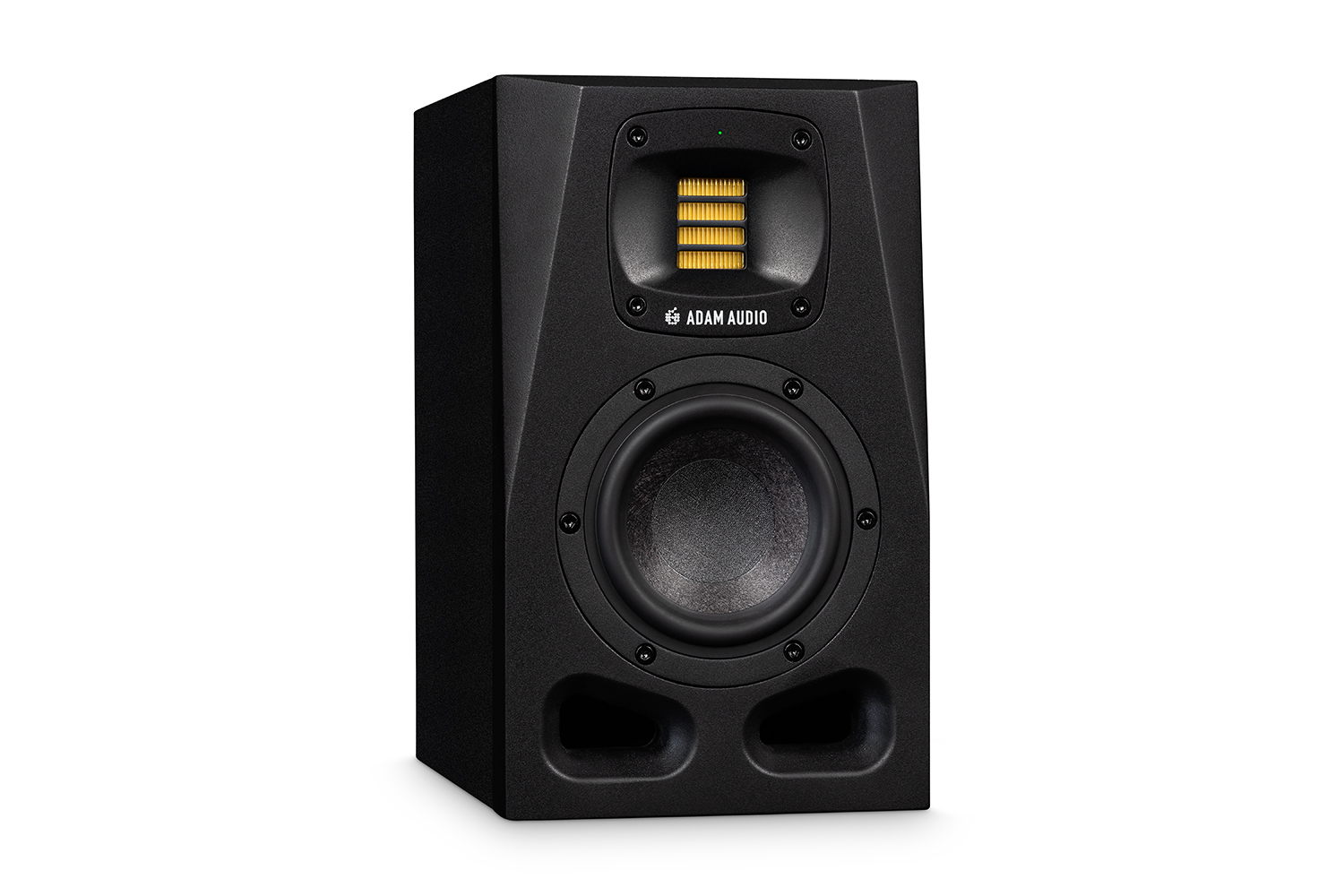

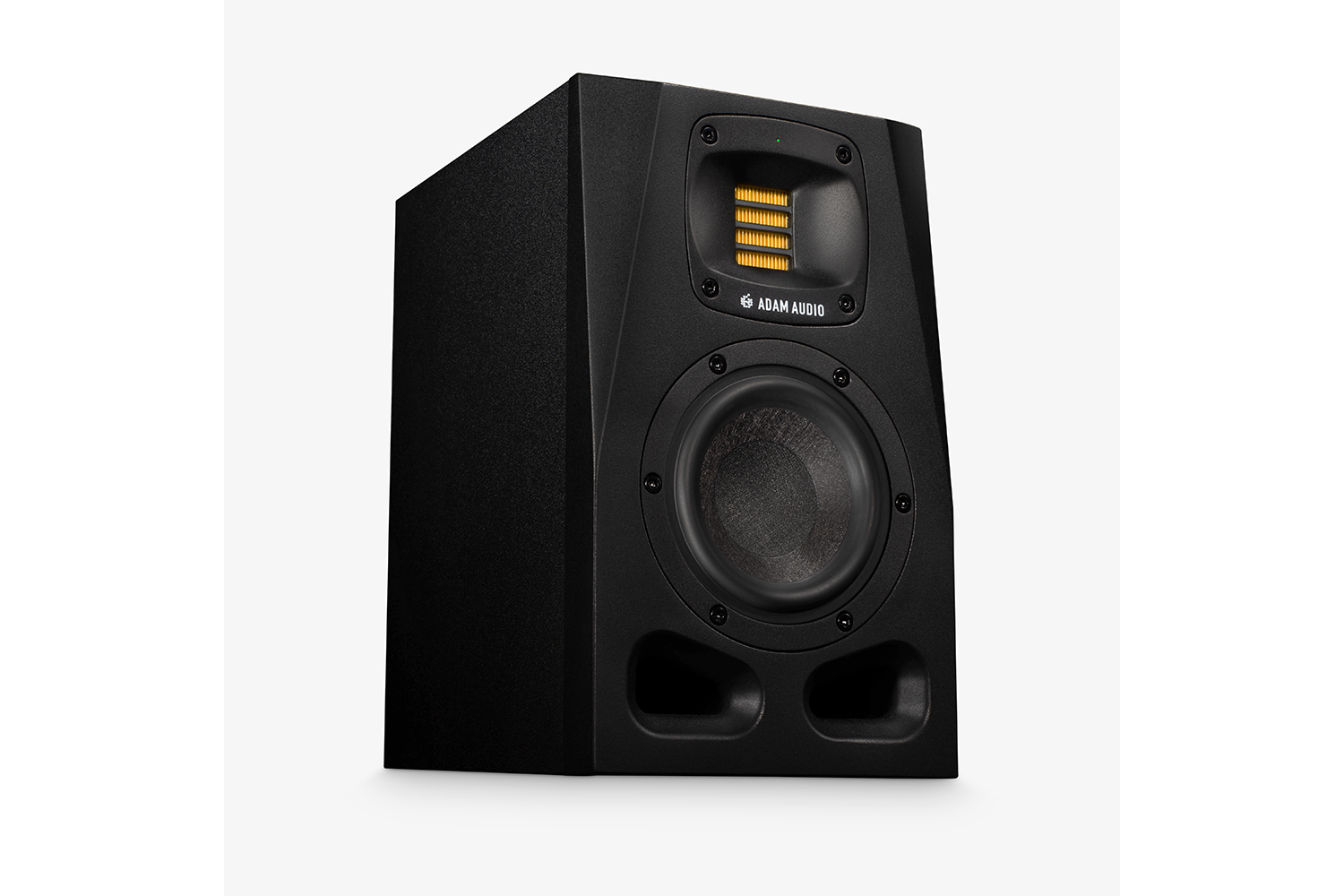

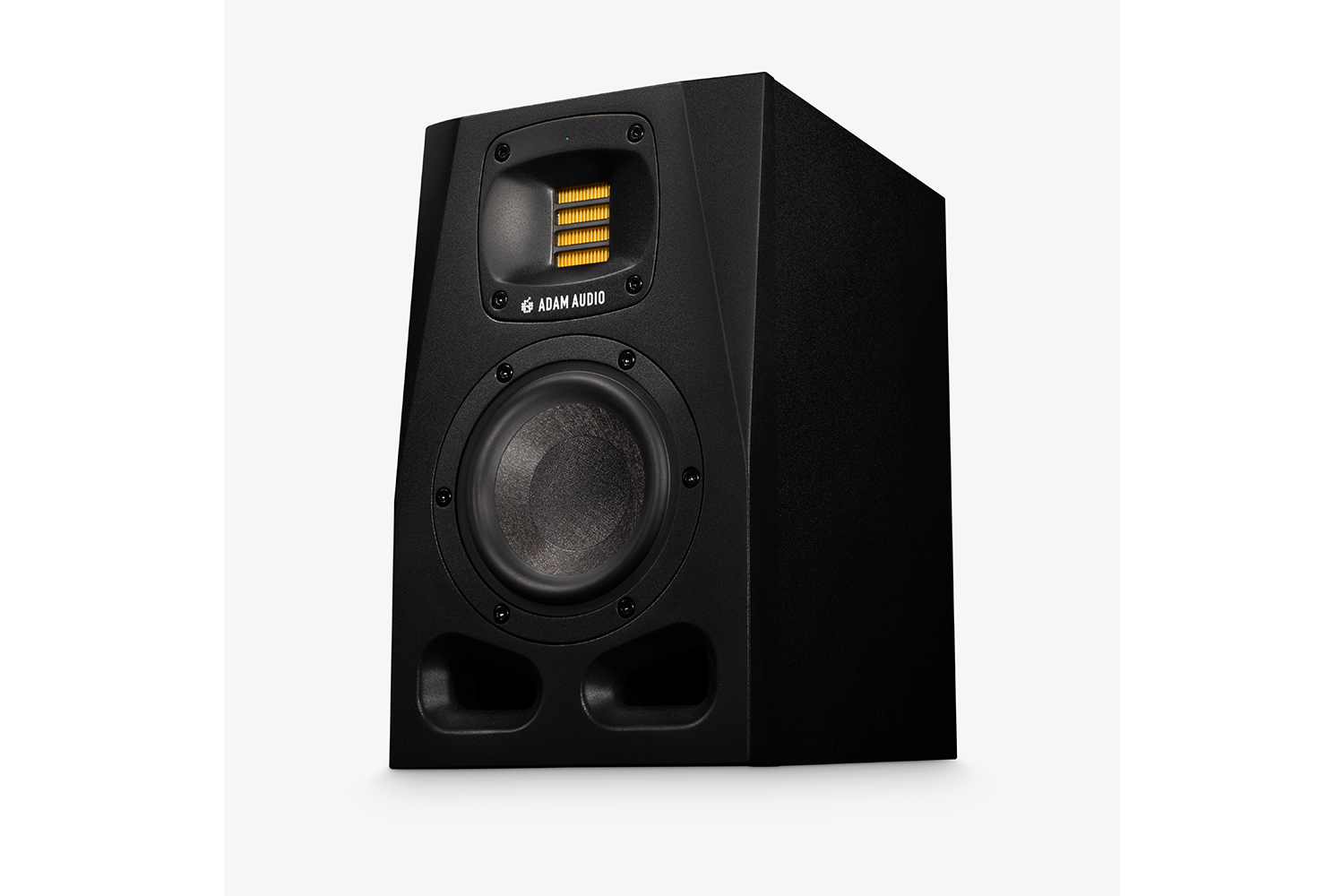

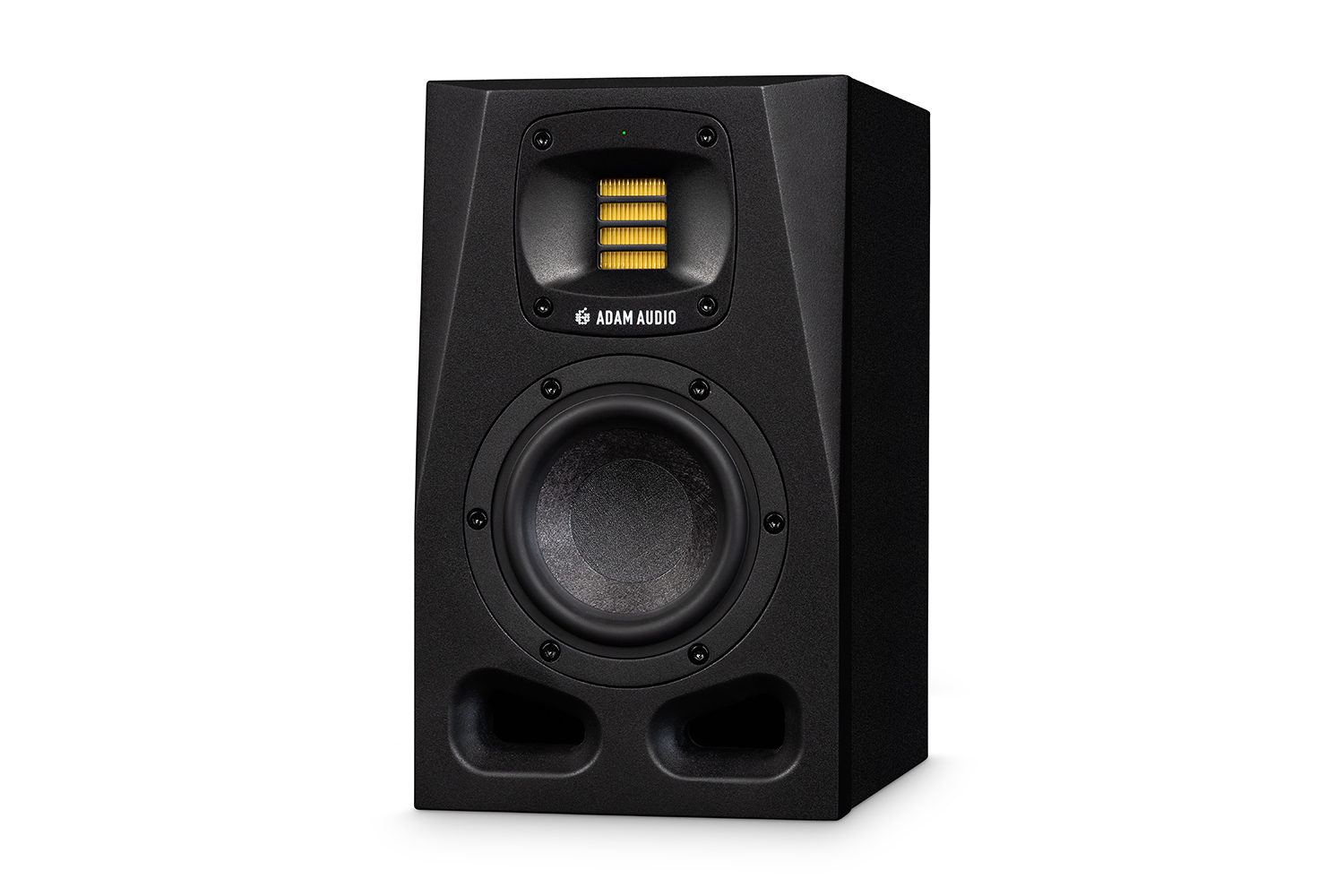

The A4V is a two-way speaker incorporating a 4-inch long-throw woofer made from the same Multi-Layer Mineral (MLM) fibers as other A Series speakers plus the classic X-ART tweeter. Onboard DSP-based tuning capabilities let you easily dial in the perfect sound for your space.
With a frequency range of 52 Hz to 45 kHz, the A4V can accommodate a broad spectrum of audio applications—from producing podcasts to mixing string quartets—and will fit well within immersive and 3D setups.
Key Features

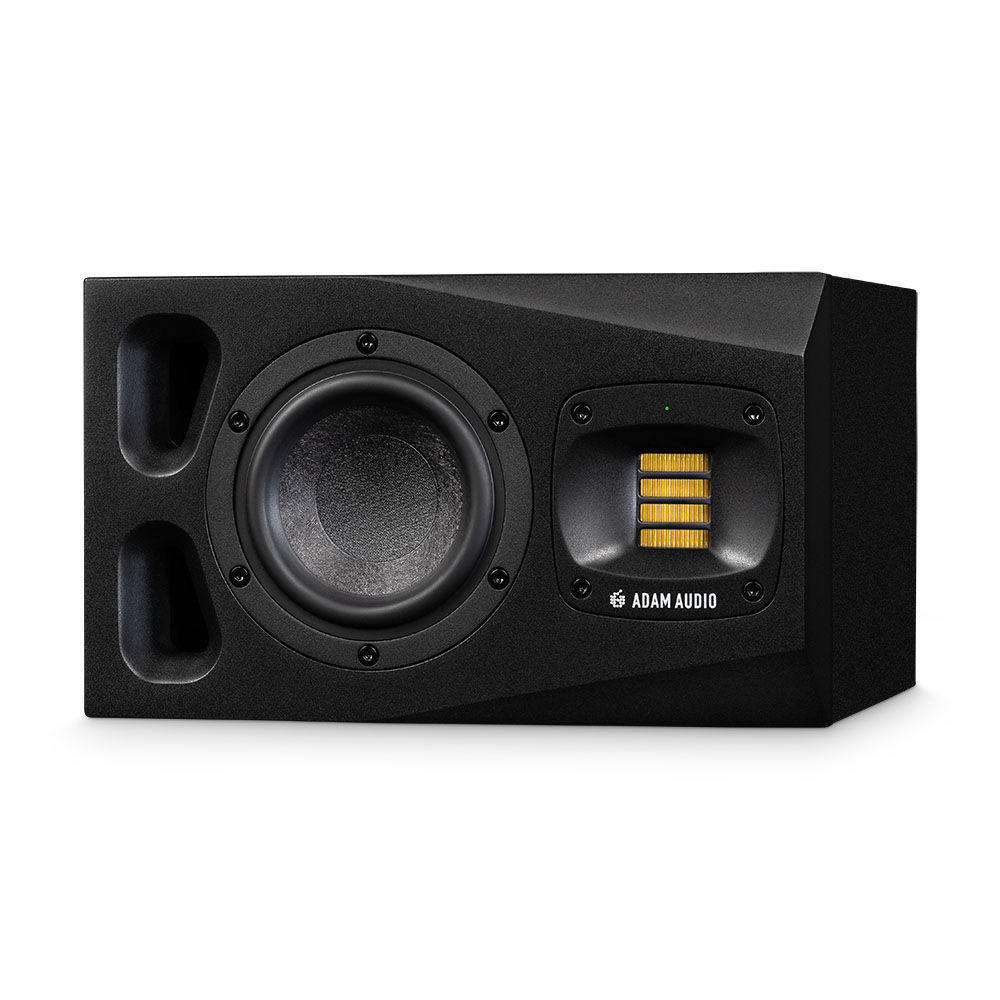

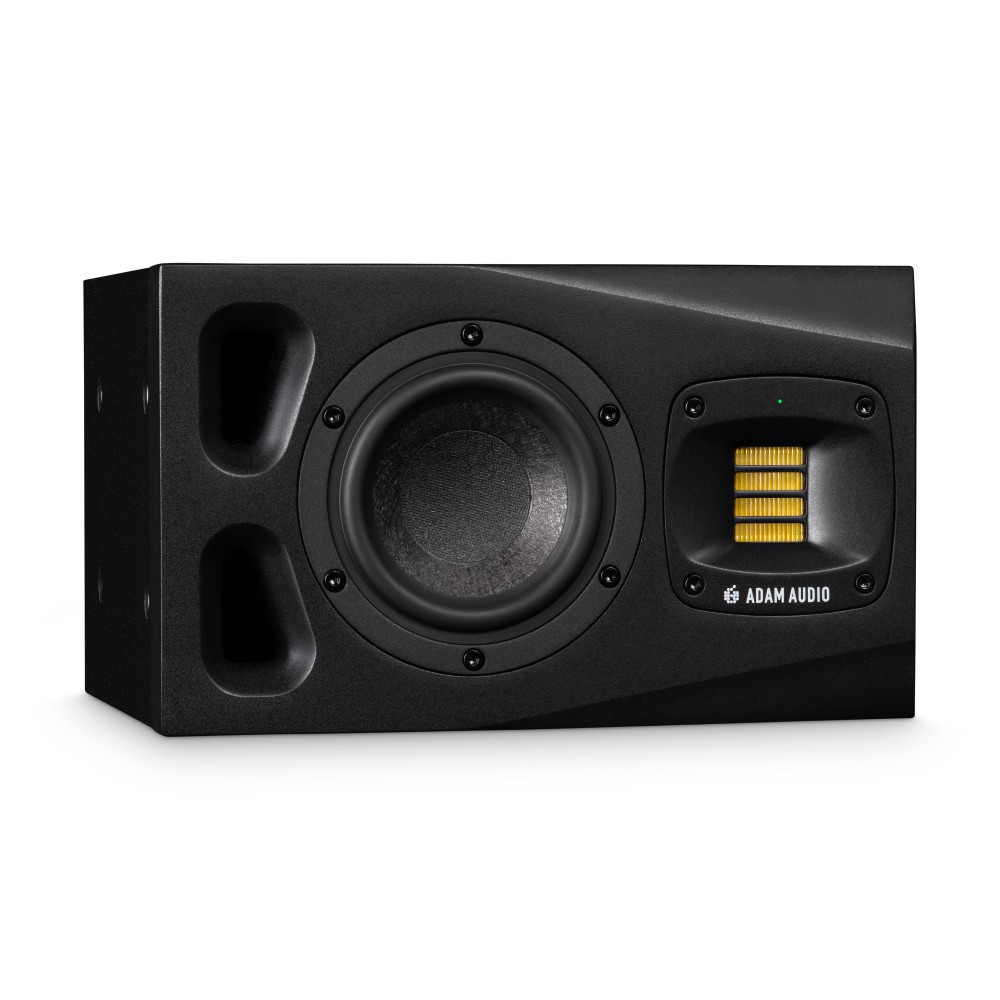

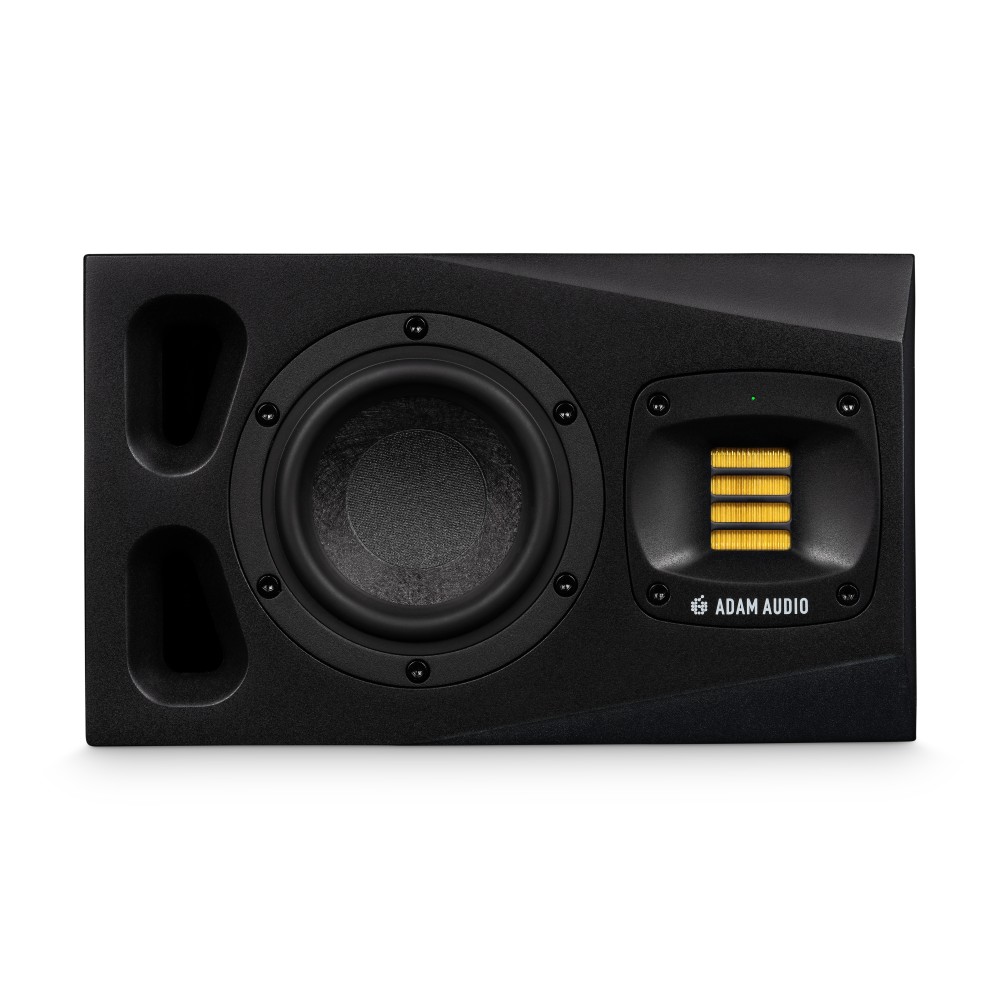

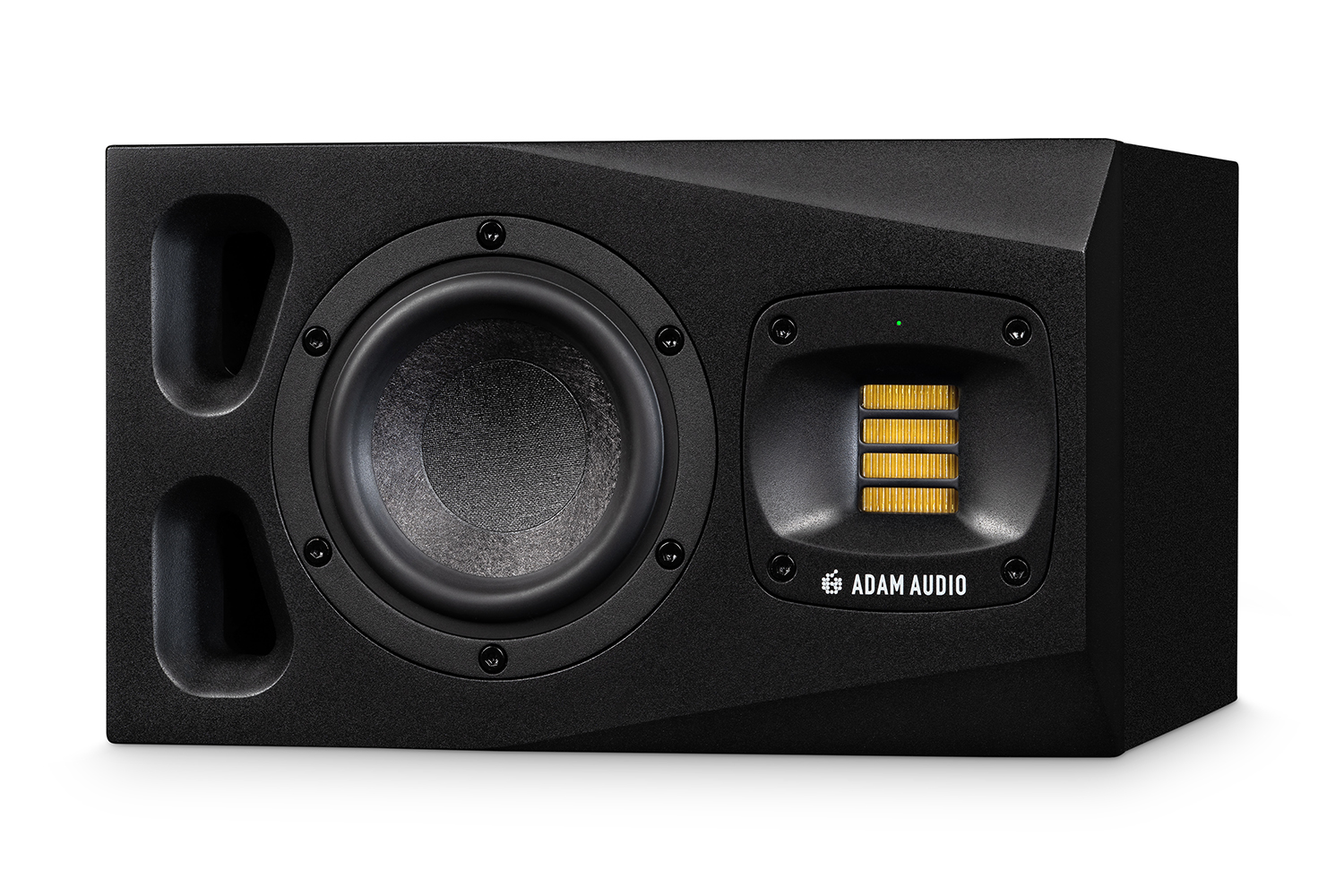

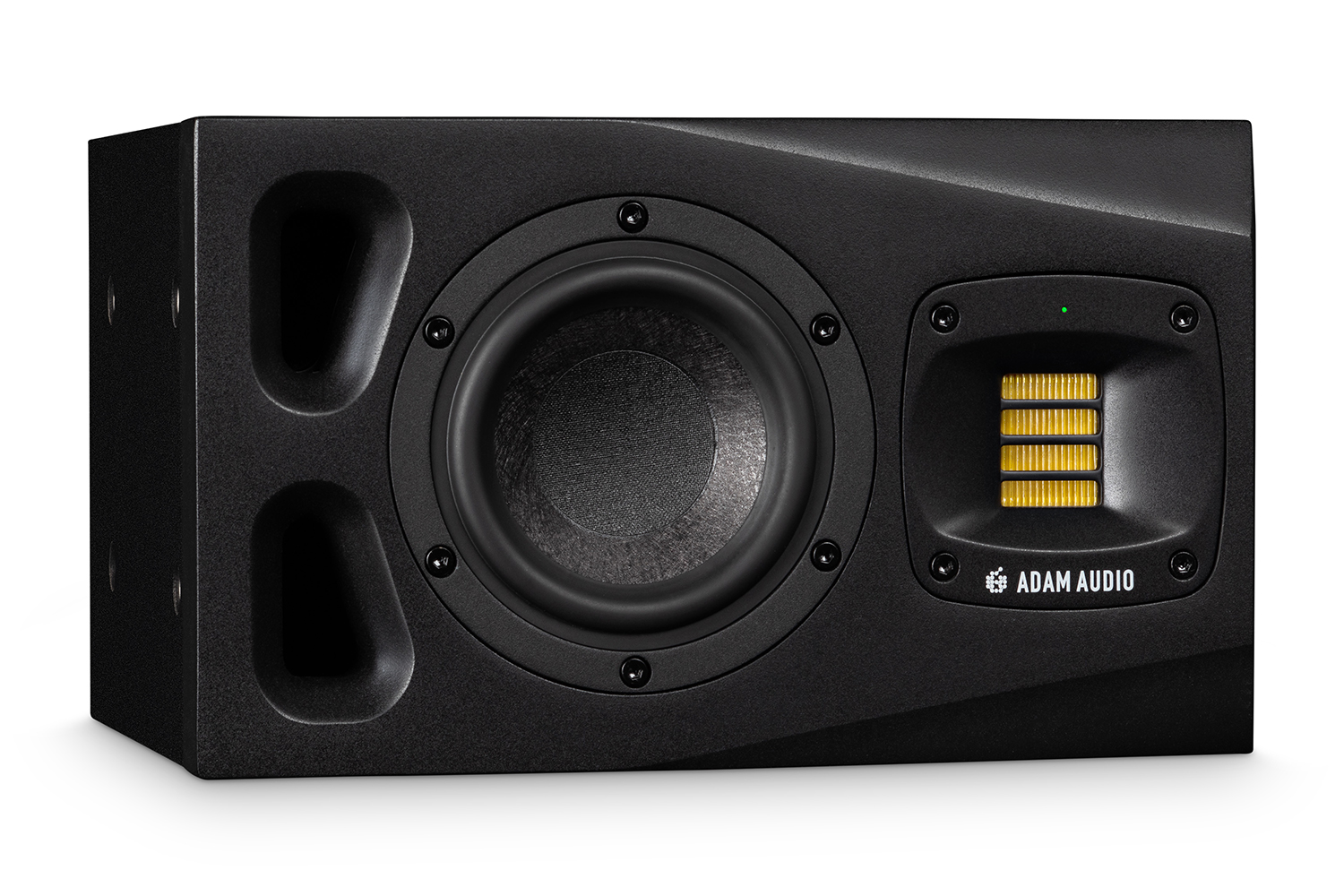

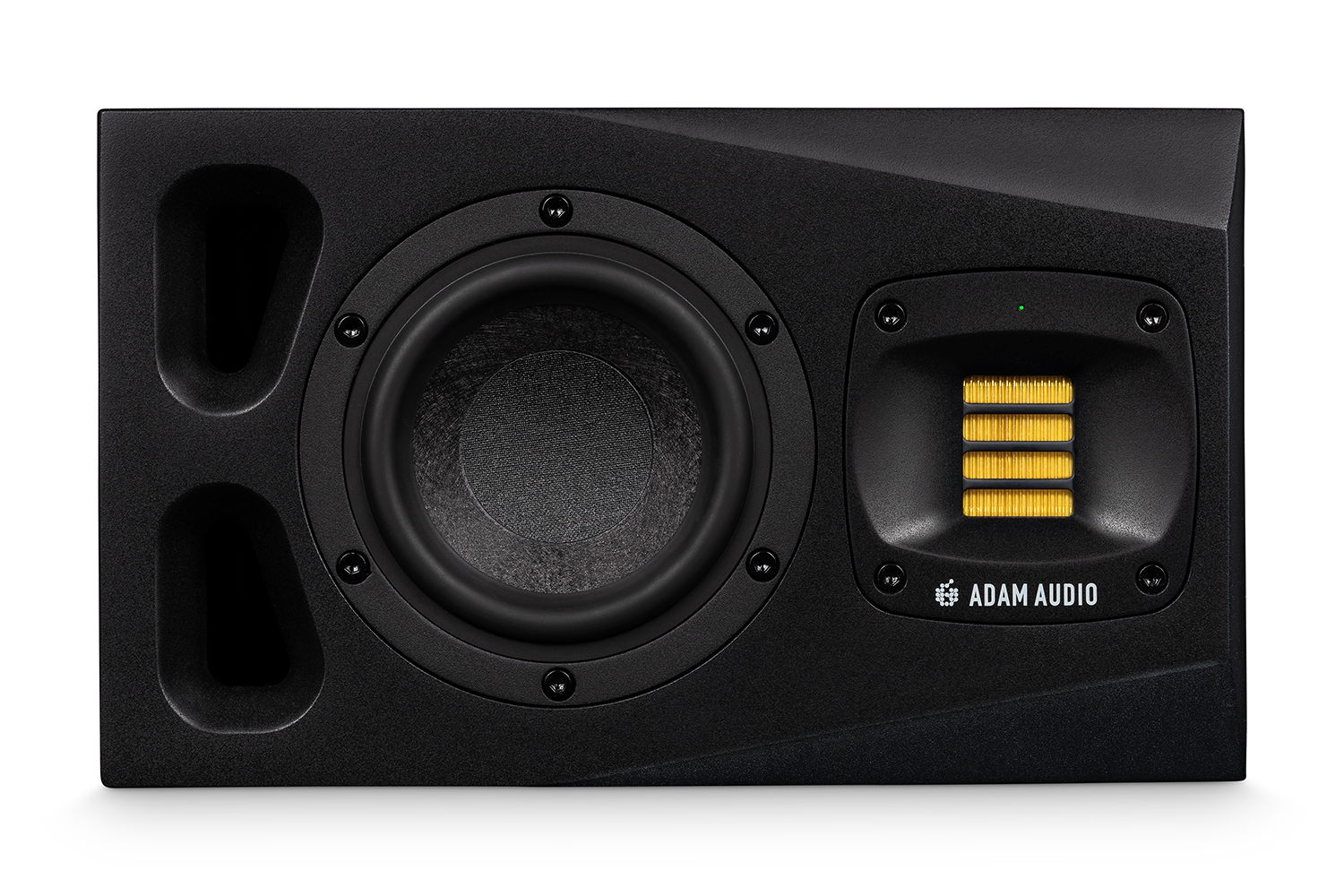

- German Handmade Precision X-ART Tweeter with rotatable HPS waveguide
- 4” Woofer (Multi-Layer Mineral)
- Total Peak Amp. Power: 130 W
- Frequency Response @ -6 dB: 52 Hz – 45 kHz
- Maximum SPL per speaker at 1 m: 100 dB SPL
Specifications
- Display: Front panel multi-color LED
- Cabinet Design: Dual front ported
- Cabinet Material: Vinyl wrapped MDF and painted MDF front panel
- Mounting options: Threaded inserts on the bottom of the cabinet (4 x M8)
- Power consumption (max, idle, sleep): 220 W, 10 W, 3.5 W
- AC Input Voltage: 100 – 240 V, 50/60 Hz
- Power Rating: 300 W max.
- Operating Conditions: -10° C to +40° C (+14° F to +104° F); <75 % RH, non-condensing
- Weight: 5.8 kg (12 lbs 13 oz)
- Dimensions (Height x Width x Depth): 268 mm x 158 mm x 220 mm (10 1/2″ x 6 1/4″ x 8 5/8“)
- Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
- Delivery Contents: A4V loudspeaker, power cable, Quick Start Guide

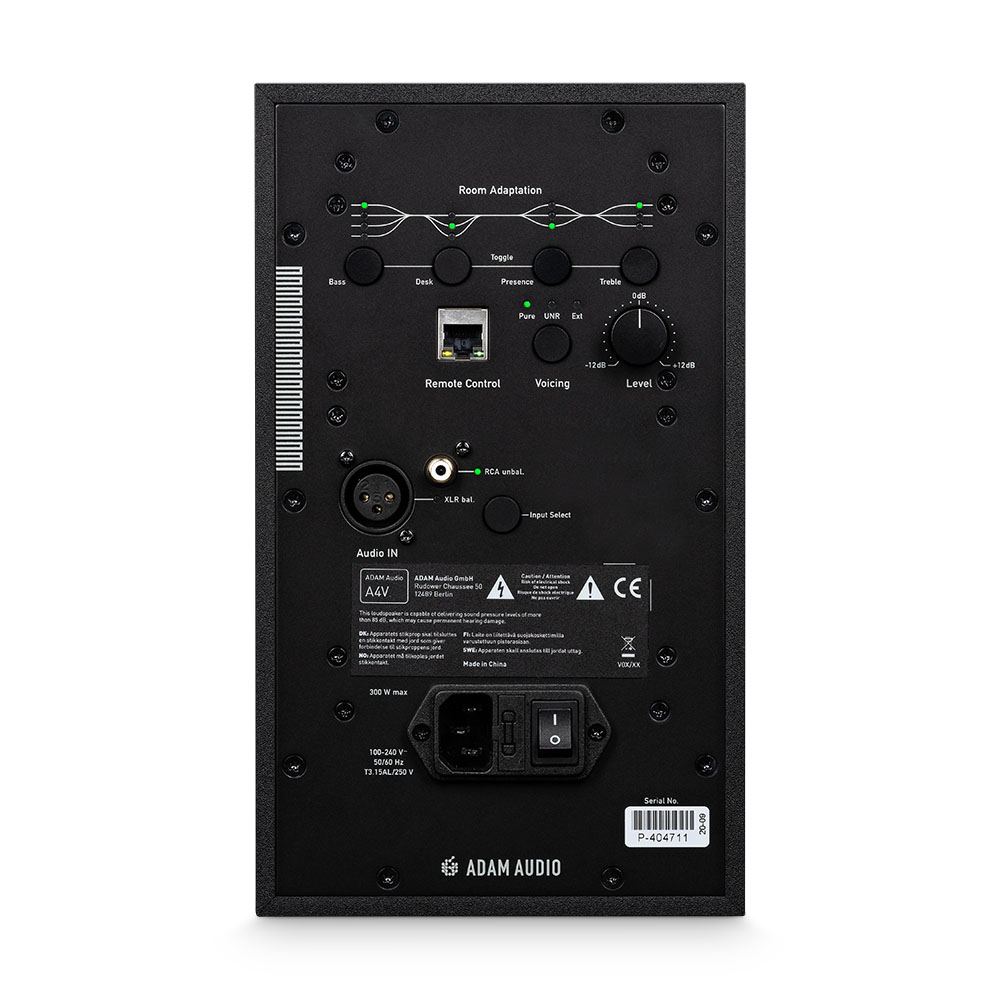

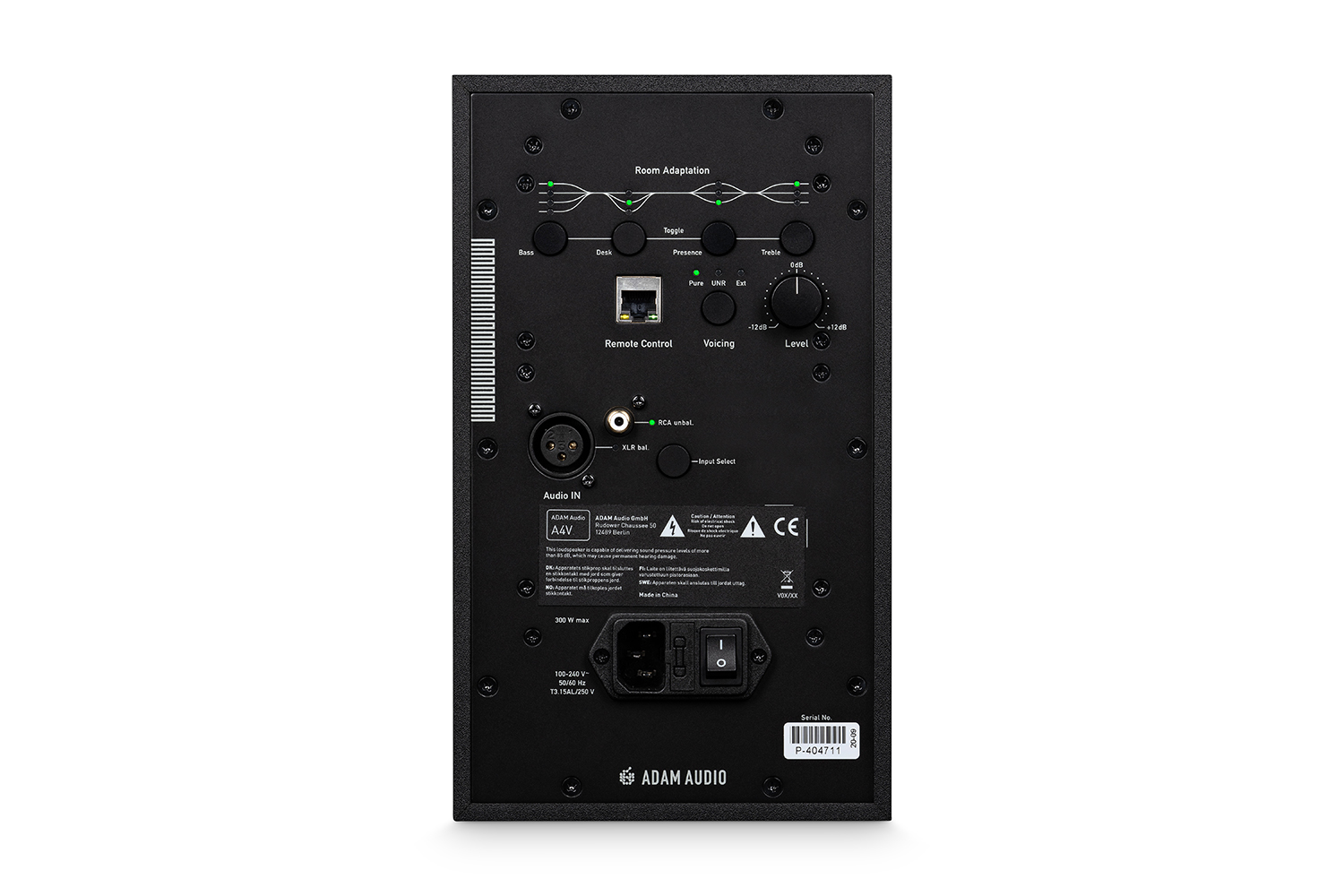

Audio Input Connectors
- Analog: XLR, RCA
- Input Impedance: 9 kOhm / 3.3 kOhm
- Max. Input Level: +19 dBu
Acoustics
- Frequency Response @ -3 dB: 58 Hz – 41 kHz
- Frequency Response @ -6 dB: 52 Hz – 45 kHz
- Crossover Frequencies: 3.0 kHz
