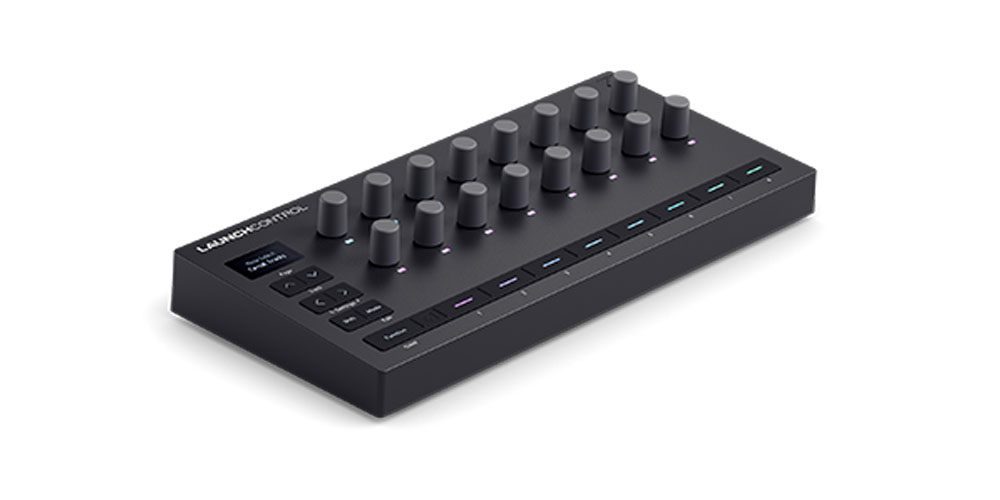

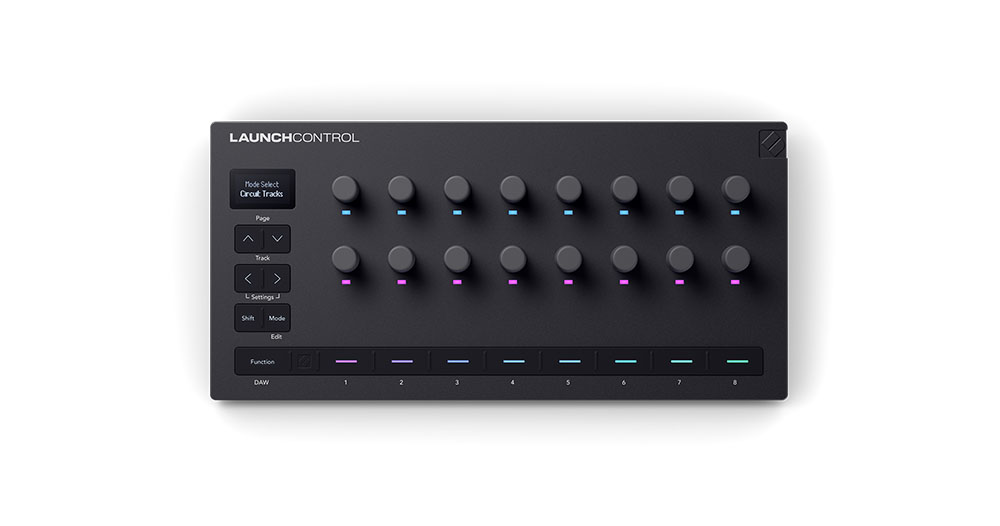

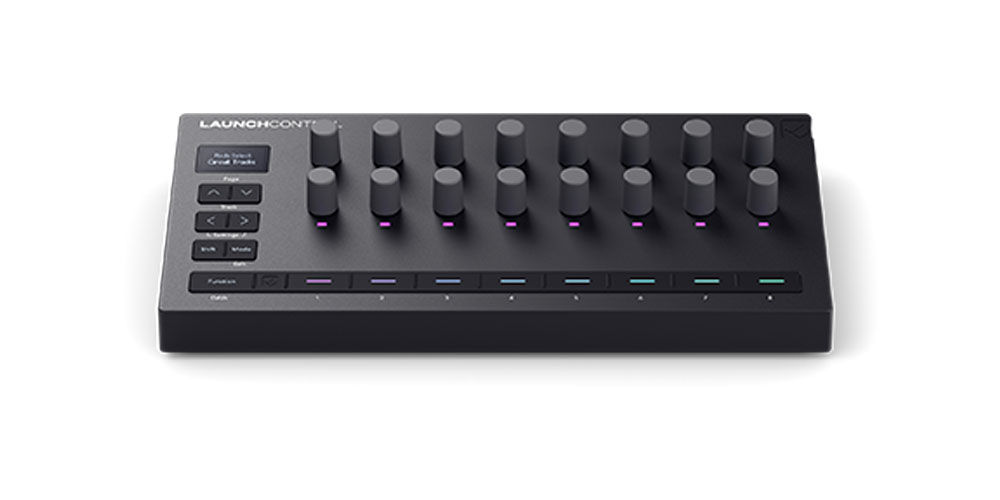

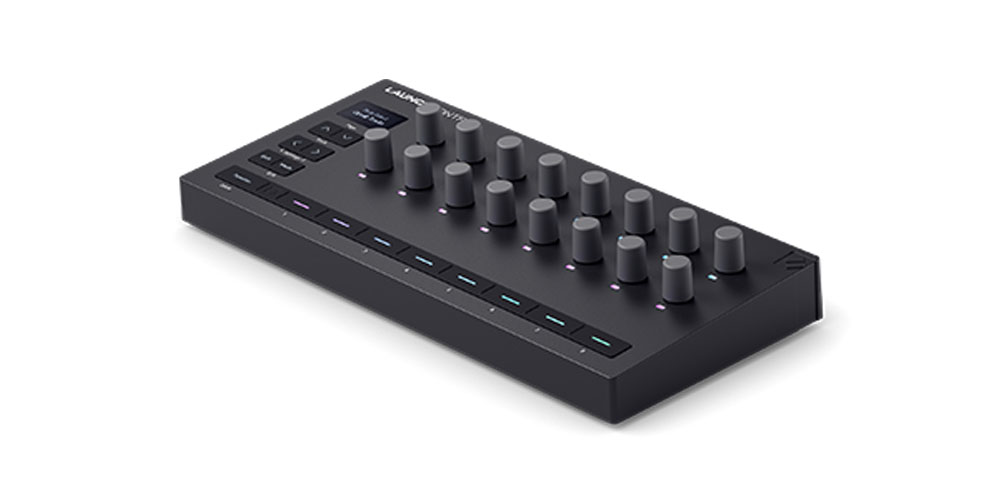

Launch Control is a compact and portable MIDI control surface designed to integrate with all major DAWs, software synths, effects, and external hardware. Connect via USB or MIDI I/O and adjust parameters with 16 endless rotary encoders, eight assignable buttons, and a crisp OLED display.
Key features
- 16 endless encoders
- Eight assignable buttons
- MIDI routing via USB and 5-pin DIN
- Store up to seven Custom Modes
Specifications
Controls
- 16 endless encoders with RGB LEDs
- Eight assignable buttons
- Track navigation buttons
- Two page buttons
- One mode button
- One function button
Display
- 128 x 64 monochrome OLED display
DAW integration
- Custom DAW scripts: Ableton Live 12 or later, Logic Pro 11 and later, Cubase 12 and later, FL Studio, and Bitwig
- Compatible with other DAWs through the use of HUI

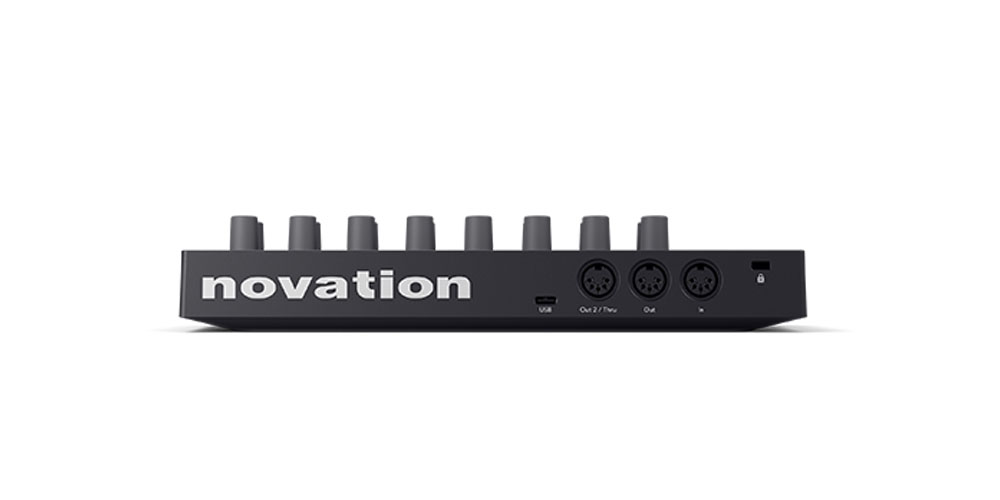

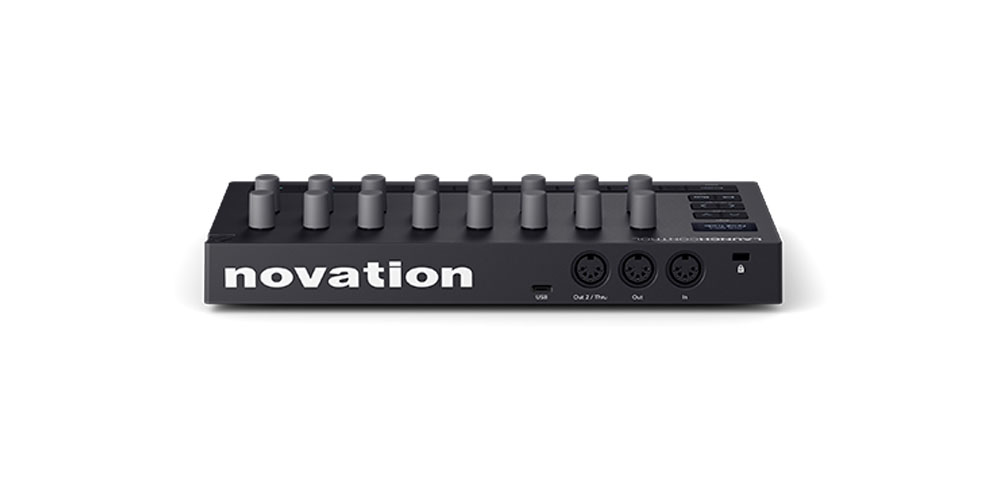

Connectivity
- USB-C socket
- 5-pin MIDI in socket
- 5-pin MIDI out socket
- 5-pin MIDI out2/thru socket
- Kensington security slot
Dimensions
- Width251 mm (9.88 in)
- Depth122 mm (4.80 in)
- Height43 mm (1.69 in)
- Weight0.49 kg (1.07 lbs)
Power requirements
- USB bus powered
- Power supply not included
What’s in the box?
- Launch Control
- 1.5m USB type C-to-A cable
