RedNet HD32R
AED 9,401
32×32 Pro Tools | HD I/O with dual PSUs
Available on backorder
Authorised Distributor

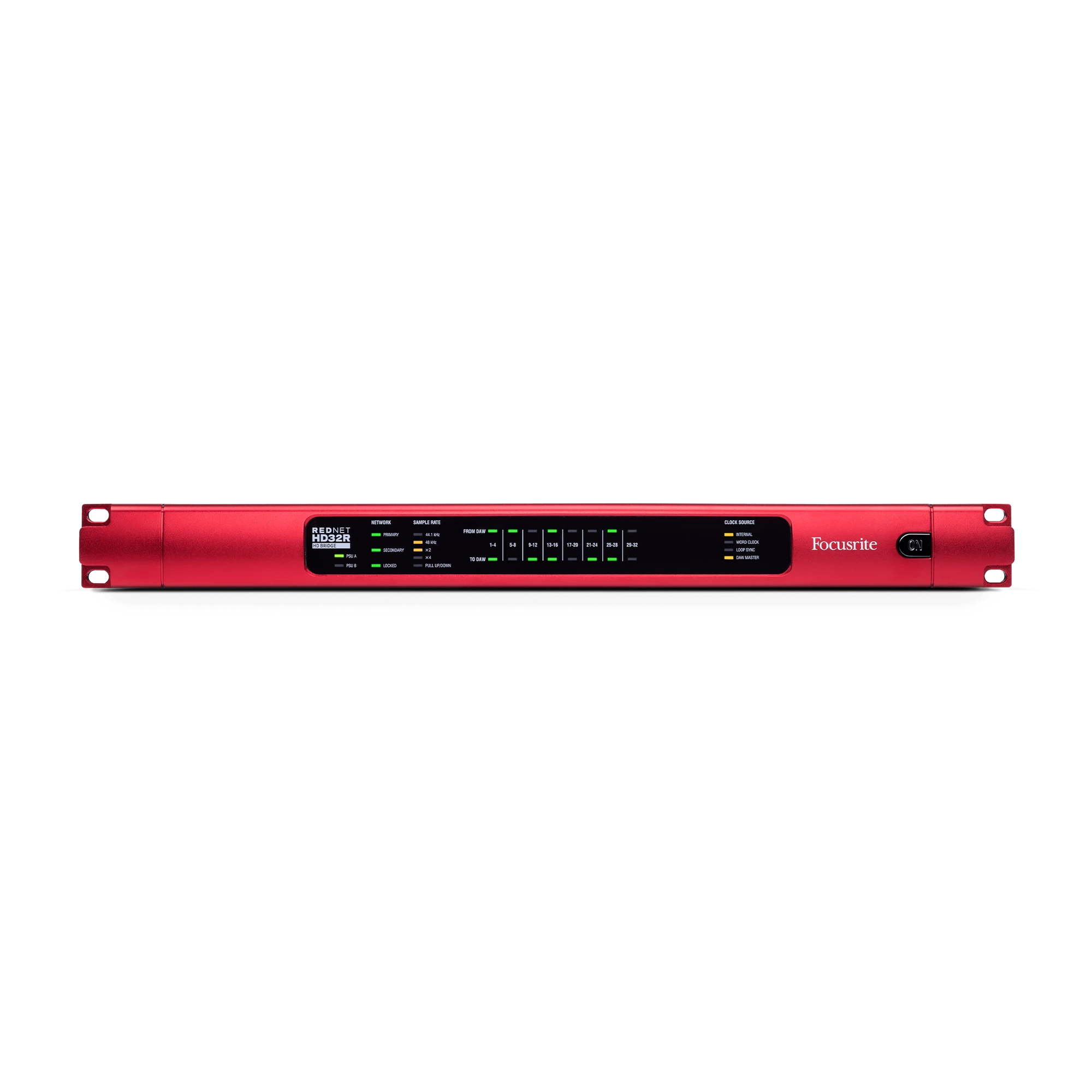

RedNet HD32R is a 1U, 19in rack-mount Dante interface that allows Pro Tools|HD users direct access to the full benefits of the Dante digital audio networking system, including its uniquely flexible network topology and premium quality audio interfaces. The Pro Tools system is connected to the HD32R via standard Mini DigiLink ports.
Dual Ethernet ports with locking etherCON connectors are provided, with several operating modes including daisy-chaining and redundancy confirmed by front-panel indicators. Two separate power supplies with fault detection capability are included, with separate power input sockets (with retaining clips) on the rear of the unit. Power state is indicated both remotely and on the front panel. The HD32R features a rugged, roadworthy exterior and high internal build quality. In addition, it offers a compact 1U rack-mount form factor for a full 32 channels of I/O.
HD32R acts as a 64-channel (32 in/32 out) digital break in/out box, operating in the same way as a standard interface, and supporting a wide range of Pro Tools|HDX and HD cards. Supported Pro Tools systems include Pro Tools|HDX, Pro Tools|HD Native, Pro Tools|HD Native Thunderbolt, and Pro Tools|HD TDM. Up to six HD32R modules can be used with a Pro Tools|HDX system and three with Pro Tools|HD, allowing the maximum channel count for either. Simply connect the HD32R to Pro Tools|HD with standard Mini DigiLink connectors.
HD32R allows the use of the low latency performance of Pro Tools|HD cards, bringing the full benefits of Dante audio-over IP networking and the RedNet product range to a Pro Tools|HD system. The entire range of Dante-compatible products including the superb RedNet analogue and digital interfaces can then be used with a Pro Tools|HD system, all connected via Ethernet cable.
Key Features
- Allows Dante Ethernet-based audio networking products to interoperate fully with Pro Tools|HD & Pro Tools|HDX .
- Ethernet and power supply redundancy with auto switchover in case of failure and locking connectors.
- Provides the vital link to create an extensive high-quality audio network based on standard Cat 5e or Cat 6 wiring, bringing the latest advances in digital audio networking to Pro Tools|HD.
- Cost-effectively increase audio I/O quality and flexibility with RedNet interfaces.
- Permits multiple workstations to access the same interface hardware and I/O.
- No changes to Pro Tools workflow required — simple, logical assignment of RedNet I/O to Pro Tools|HD inputs and outputs.
- Up to 32 I/O with Pro Tools|HD over single DigiLink connection per RedNet HD32R.
- Additional Avid/Digidesign interfaces may be connected to expansion ports.
- Upgrade to RedNet interfaces while remaining fully compatible with TDM- or AAX-DSP-based plugins and saved sessions.
Specifications
Digital performance
- Supported Sample Rates44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4 / -0.1 / 0.1 / 4.167) at 24 bit
- Clock SourcesInternal, Word Clock, Loop Sync (master or slave) or from Dante Network Master
- External Word Clock RangeNominal sample rate ±7.5
- Channel Count32x32 at up to 96kHz sampling rate, 16×16 at 176.4 and 192kHz
Rear panel connectivity
- Primary Port1 x Mini DigiLink
- Expansion Port1 x Mini DigiLink
- Word Clock Input1 x BNC 75O port (switchable termination)
- Word Clock Output1 x BNC 75O port
- PSU2 x IEC Inputs with retaining clips
- Network2 x etherCON NE8FBH-S, also compatible with standard RJ45 connectors
Network modes
- RedundantAllows unit to connect two independent networks
- SwitchedConnects both ports to integrated network switch allowing daisy-chaining of device
