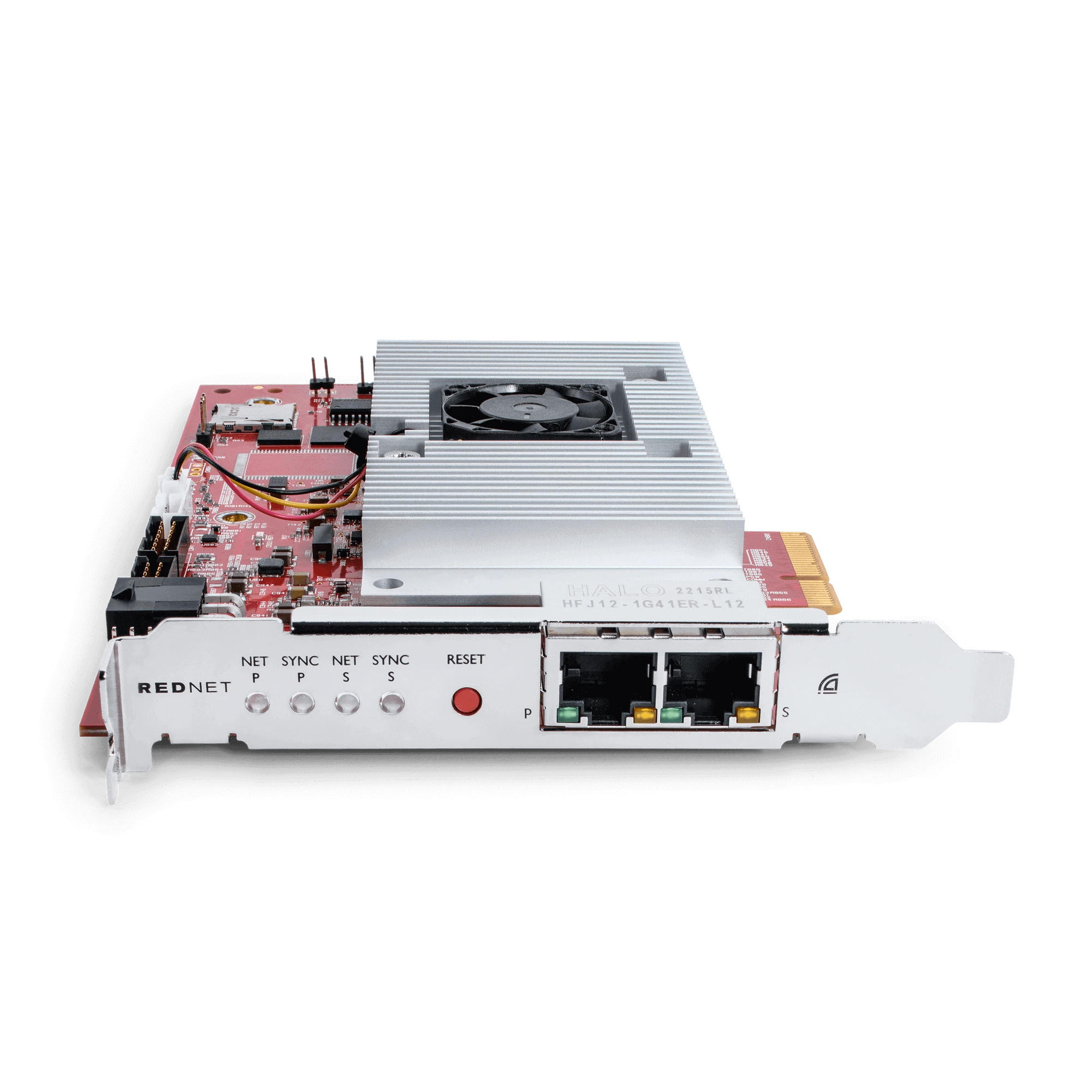

Designed for immersive formats like Dolby Atmos and all performance-critical high-channel-count Dante applications, RedNet PCIeNX delivers 128 x128 audio channels (up to 192kHz) out of the box, with ultra-low latency.
Key Features
- 128×128 channels (24-bit/192kHz) with ultra-low round-trip latency
- RedNet PCIeNX offers expandable connectivity with an optional upgrade to 256×256 audio channels (24bit/96kHz) with Dante Ready™.
- Perfect for large recording sessions and post-production work using Dolby Atmos and other immersive formats
- Dual Ethernet RJ-45 connections allow for both switched and redundant mode, offering flexible connectivity
- Supports the latest standards, including AES67 and compliance for SMPTE ST 2110 (DDM required)
- Compatible with Windows or Mac computers (Intel and Apple Silicon supported)
- Easily installed in a PCIe slot or Thunderbolt chassis
- Integrated network interface – allowing a single-cable connection for audio and network control
- Purchase with confidence. RedNet PCIeNX is backed by Focusrite’s 3-year warranty award-winning 24/7/365 technical support
Please note: attachments such as the Aux power connector, SD card slot and JTag connectors are not included with this product.
Specifications
Overview
- Simultaneous Inputs & Outputs128x128 (all sample rates) — out of the box
- 256×256 (up to 96kHz) — with optional upgrade
- Digital PerformanceSupported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24-bit
- Dante Connectivity2 x Ethernet standard RJ45 connectors (compatible with Cat 5e and above)
- Driver CompatibilityMulti-client ASIO and WDM (Windows) | CoreAudio (Mac)
- Front Panel2x Network Active LED indicators (Primary/Secondary) | 2x Network Lock LED indicators (Primary/Secondary) | 1x Factory Reset button
- Card SizeFull Height, Half Width
- PowerPowered over PCIe
- Heat PerformanceMax internal case/chassis operating temperature: 50 degrees Celsius/122 degrees Fahrenheit
