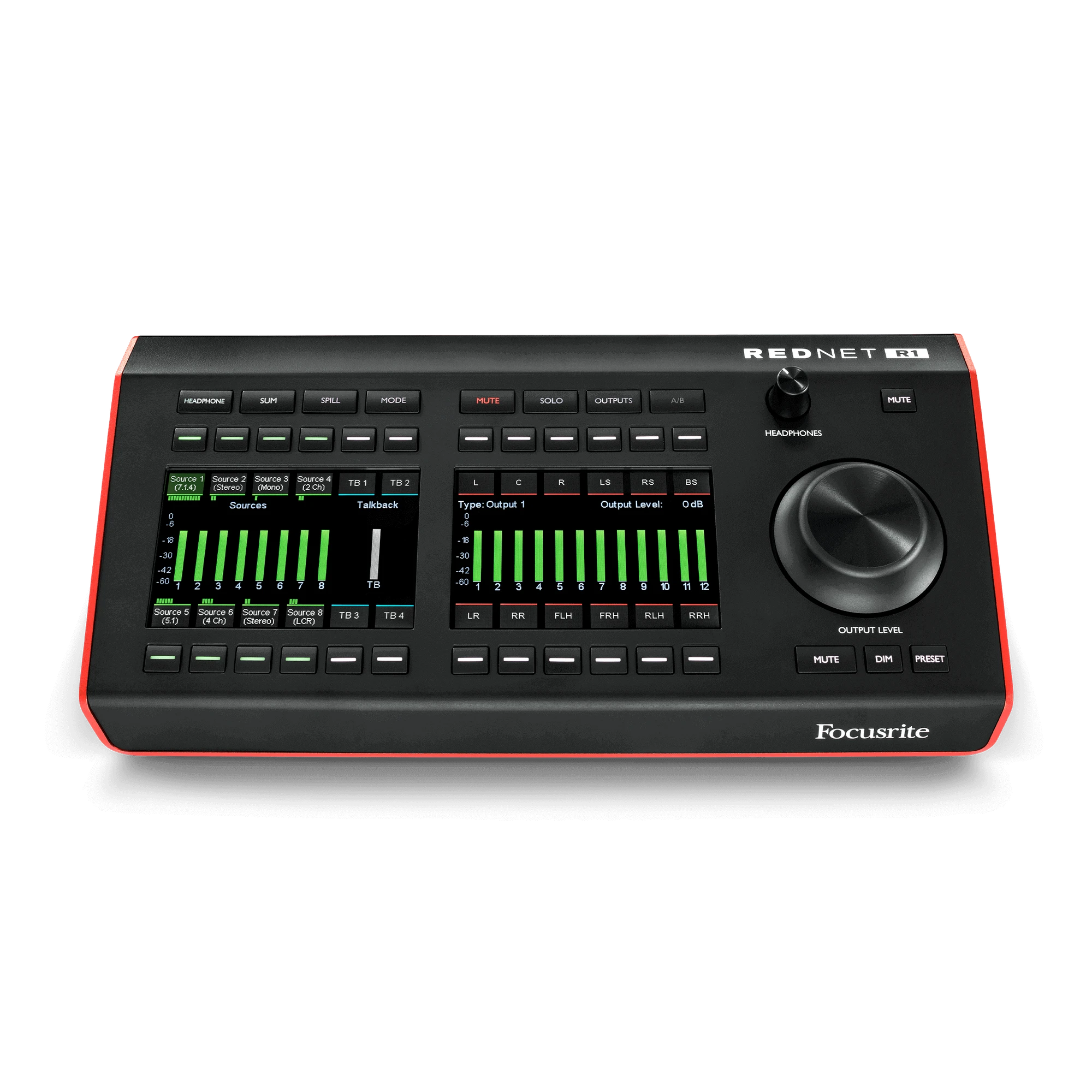

RedNet R1
AED 4,194
Desktop remote controller for Red audio interfaces
Available on backorder
Authorised Distributor
RedNet R1 enables users to interact with their audio system like never before. It provides the flexibility to control a range of different monitor output setups, ranging from mono through to 7.1.2 surround, including Dolby Atmos® and other immersive audio workflows. Alternatively, completely custom setups of up to 12 outputs can be configured for bespoke speaker configurations. RedNet R1 can be used to control groups of outputs from a Red interface’s multitude of sources and destinations, including from Pro Tools | HD and other DAWs, analogue inputs and outputs, ADAT and S/PDIF connections, and from entire Dante audio ecosystems, simultaneously and interchangeably.
RedNet R1 supports a maximum of eight input sources from 32 available audio channels, across analogue, digital, DAW and Dante connections, and mixes and routes signals to up to 12 monitor output channels. Top-panel control includes level, reference level preset selection, cut, dim, mute and a variety of solo modes. There’s an A/B switch for switching between numerous monitoring presets, and up to four fold-down presets allow fast switching for checking downmixes. Custom cue mixes can be sent to talent from any of the 32 available inputs.
RedNet R1 also features a Dante-enabled talkback section, internal mic-pre and a high-powered headphones output, so you can interact with your Dante system like never before. Up to four talkback destination groups are available when used with a Red interface. (When used with other Dante devices, a single talkback group is available.) RedNet R1 has an internal microphone, or users can connect their own microphone via the rear-panel XLR. The high-fidelity headphone output is powerful enough to deliver high-SPL audio to high-impedance headphones.
RedNet R1 features two LCD displays for highly accurate level metering of the outputs, sources and headphone outputs, and for giving visual cues for navigating around menus. The unit is configured using RedNet Control 2, the software manager designed primarily for ease of use in quickly setting up both simple and complex monitoring and routing configurations. Other features of the RedNet R1 include a quarter-inch jack socket, which accepts a footswitch for talkback management, LFE muting and more. It can be powered via Ethernet to reduce cabling complexity (using the PoE standard), or by a DC power supply.
Key Features
- Desktop remote controller for Red audio interfaces — The first Dante®, Pro Tools | HD™ and Thunderbolt™ interface system with a monitor controller.
- Switch and sum — Supports sum and spill for source groups with upto 8 available source groups, each of which can hold upto 12 channels to a maximum of 32 in total.
- Flexible monitor control — Controls include level, reference level, preset selection, cut, dim, mute, A/B switch, and a variety of solo modes.
- Monitor fold-downs — Up to four fold-down presets allow fast switching for checking downmixes.
- Talkback & headphones functionality — Four destination groups when used with a Red interface, or a single talkback group when used with other Dante devices. High-fidelity output can take its source from a multitude of sources.
- Built-in Microphone — RedNet R1 has an internal talkback microphone, or users can connect their own, via the rear-panel XLR.
- Precision metering and display — Two LCD displays for highly accurate level metering of the outputs, sources and headphone outputs, and for giving visual cues for navigating around menus.
- Software setup with hardware-focussed workflow — RedNet Control is designed for quickly setting up simple or complex configurations.
- Footswitch input — Quarter-inch jack socket accepts a footswitch, for talkback management, LFE muting and more.
- Power-over-Ethernet (PoE) support — Powered via ethernet (using the PoE standard), or using the included DC power supply.
Specifications
Internal talkback
-
- All measurements taken at maximum gain unless otherwise stated, Rs = 150Ω
- Gain Range 0dB to 55dB
- TypeElectronically Balanced, Zin = 3kΩ
- Max. Input Level +10dBu ± 0.5dB
External talkback
-
- All measurements taken at maximum gain unless otherwise stated, Rs = 150Ω
- Gain Range 0dB to 55dB
- Type Electronically Balanced, Zin = 3kΩ
- Max. Input Level +10dBu ± 0.5dB• Frequency Response: 20Hz – 20kHz ± 2dB
- THD + N < -98dB (0.0012%) @ -1dBFS
- EIN < -128dBu ‘A’-Weighted (typical)
- Signal-to-Noise Ratio -111dB ‘A’-Weighted (typical), min gain
- Common-Mode Rejection Ratio 50/60Hz CMRR: <-77dB
Headphone output
-
- All measurements taken at +19dBm reference level, maximum gain, RL = 600Ω
- PropertyValue
- 0 dBFS Reference Levels +11dBm
- Frequency Response 20Hz to 20kHz ±0.5dB
- THD + N -100dB (0.001%) @ -1dBFS, Rs = 150R
- Dynamic Range 108dB ‘A’-weighted (typical), 20Hz – 20kHz
- Noise in Presence of Signal (NiPoS) > -97 dBu ‘A-Weighted’
- Output Impedance: 5Ω• Headphone Impedance 32Ω – 600Ω
Digital performance
- Supported Sample Rates 44.1 / 48 / 88.2 / 96 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit
- Clock Sources Internal or from Dante Network Master.
Inputs
- External Talkback Mic Input 1 x XLR (F)
- Foot Switch 1 x 1/4″ stereo jack
Outputs
- Headphone Outputs: 1 x 1/4″ stereo jack
PSU & network connections
- PSU (PoE and DC) 1 x PoE Input and 1 x DC 12V Locking Barrel Input Connector.
- Network 1 x Standard RJ45 connector.
Power
- Power over Ethernet (PoE) Complies with IEEE 802.3af class 0 Power-over-Ethernet standard (PoE A or PoE B compatible)
- DC Power Supply 1 x 12V 1.2A DC Power Supply. Power Consumption: PoE: 10.3W – DC: 9W (When using supplied D PSU)
