RedNet X2P
AED 5,062
2×2 analogue I/O with 2x mic pres, headphone and line output, PoE supplied
Available on backorder
Authorised Distributor

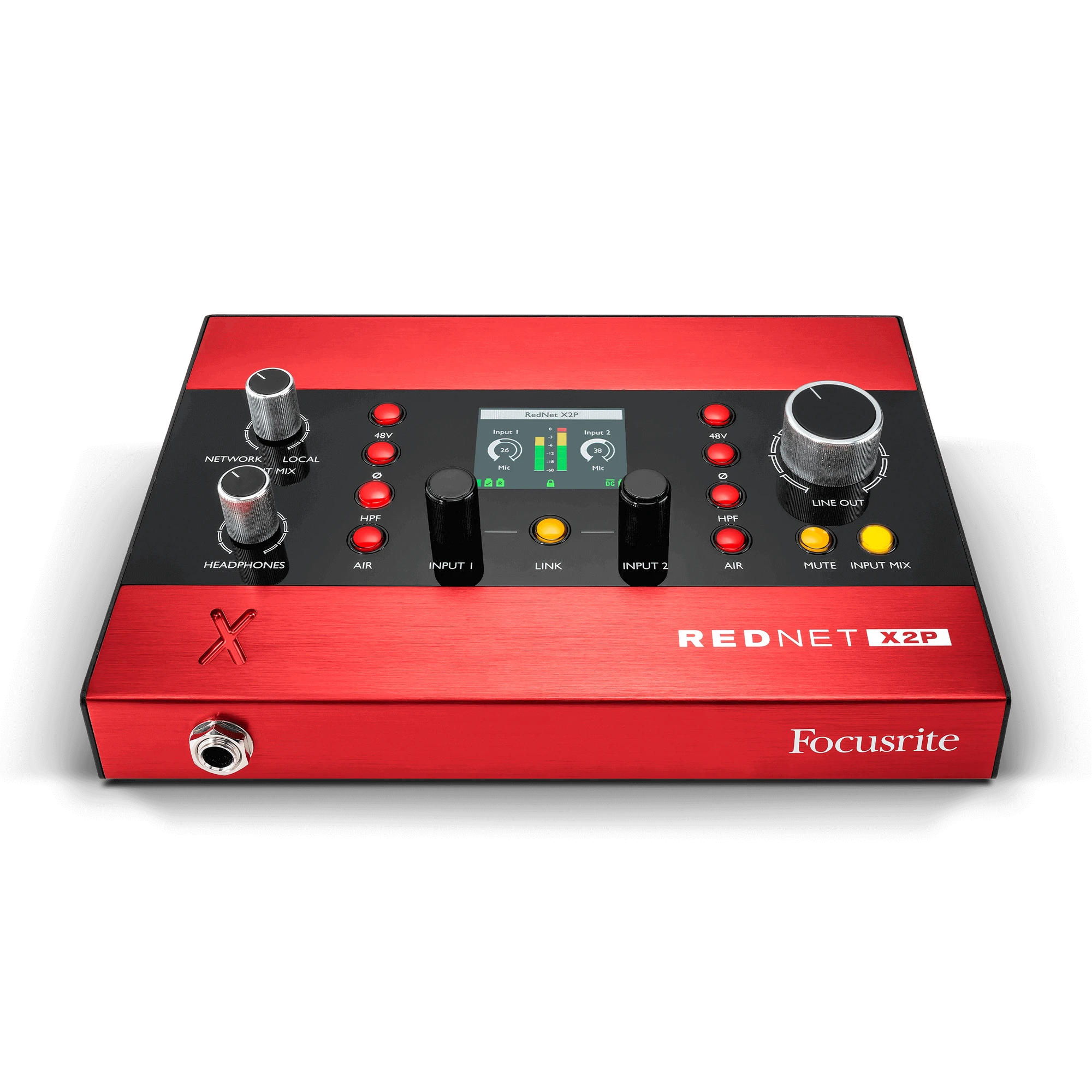

RedNet X2P is a compact, robust 2×2 Dante™ audio interface featuring two Red Evolution mic pres, stereo line out and a stereo headphone amplifier. RedNet X2P quickly adds I/O to your Focusrite Red interface or any Dante™ audio-over-IP system, and power, audio and remote control are supplied using a single Ethernet cable — simply use a power-over-Ethernet switch or PoE injector. A local input mixer allows ‘more me’ monitoring control, while a control lockout ensures settings remain unchanged when used remotely.
The two digitally-controlled Red Evolution mic pres provide large amounts of ultra-clean gain along with stereo linking, individual phantom power, a high-pass filter and phase reverse. Plus they include Air mode, emulating the sound of Focusrite’s classic transformer-based mic preamps. RedNet X2P provides high-performance audio conversion with over 118dB dynamic range. These converters have been expertly selected and calibrated to provide the best balance of sound quality, dynamic range and conversion latency.
Sometimes it helps to have direct foldback within the interface, so RedNet X2P features a crossfader to enable you to control the level of local inputs versus network inputs that feed either the line outputs or the headphone outputs. The unit can be mounted directly to a mic stand, keeping it out of the way and within reach.
Flexible control locks enable you to lock out local control of mic pre settings, output settings or both. Leave RedNet X2P with your artists and allow them to adjust their headphone mix and level, safe in the knowledge that they cannot accidentally adjust the mic pre gain.
Key Features
- Two of our best preamps provide ultra-clean gain, stereo linking, individual phantom power, a high-pass filter, phase reverse and Air mode.
- High-quality conversion, with over 118dB dynamic range.
- Power-over-Ethernet allows a single cable to deliver audio, control and power to RedNet X2P.
- Local input mix allows ‘more-me’ style monitoring for easy foldback control.
- Mic stand mount keeps the unit out of the way and within reach.
- Local control lockout of mic pre settings, output settings or both.
Specifications
Microphone / line inputs
- Gain Range0dB to 68dB in 1dB steps
- TypeElectronically Balanced, Zin = 6.2kO
- Max. Input Level>+24dBu, min gain
- Frequency Response20Hz – 35kHz ±0.1dB
- THD + N-103dB (0.0007%) @ -1dBFS (@ 24dB Gain)
- EIN<-130dBu ‘A’-Weighted (typical)
- Signal-To-Noise Ratio-120dB ‘A’-Weighted (typical), min gain
- Common-Mode Rejection Ratio50/60Hz CMRR: -80dB
- Phantom Power+48V, independently switchable per channel.
- HPFHigh-Pass Filter (HPF): -3dB @ 80 ± 3Hz, 12dB/Octave, independently switchable per channel
- Air Mode2dB boost at 10kHz and -2dB at 20Hz (ref 1kHz). Input impedance drop to 2.2kO
Instrument inputs
- Instrument Inputs Gain Range0dB to 68dB in 1dB steps
- Instrument Inputs TypeElectronically Balanced, Zin = 2MO
- Instrument Inputs Max. Input Level>+15dBu, min gain
- Instrument Inputs Frequency Response20Hz – 35kHz ±0.1dB
- Instrument Inputs THD + N<-100dB (0.001%) @ -1dBFS (@ 16dB Gain)
- Instrument Inputs Signal-To-Noise Ratio-118dB ‘A’-Weighted (typical), min gain
- Instrument Inputs HPFHigh-Pass Filter (HPF): -3dB @ 80 ± 3Hz, 12dB/Octave, independently switchable per channel
Line level outputs
- Line Level Outputs 0 DBFS Reference Levels+18 or +24dBu (switchable)
- Line Level Outputs Frequency Response20Hz – 35kHz ±0.1dB
- Line Level Outputs THD + N<-104dB (0.0006%) @ -1dBFS
- Line Level Outputs Dynamic Range-120dB ‘A’-Weighted (typical), 20Hz – 20kHz
Headphone output
- Headphone Output 0 DBFS Reference Levels>+19dBm
- Headphone Output Frequency Response20Hz – 20kHz ±0.2dB
- Headphone Output THD + N<-103dB (0.0007%) @ -1dBFS
- Headphone Output Dynamic Range117dB ‘A’-weighted (typical), 20Hz – 20kHz
- Headphone Output Impedance5O
- Headphone Impedance32O – 600O
Digital performance
- Supported Sample Rates44.1 / 48 / 88.2 / 96 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit
- Clock SourcesInternal or from Dante Network Master
Front panel connectivity
- Outputs Headphone Outputs1 x 1/4″ stereo jack
Rear panel connectivity
- Inputs Mic/Line/Inst Inputs2 x Locking Combi XLR
- Outputs Line Outputs2 x Male XLR
PSU & network connections
- PSU (PoE And DC)1 x PoE (Port 1) Input and 1 x DC 12V Locking Barrel Input Connector
- Network2 x etherCON connectors, also compatible with standard RJ45 connectors
Power
- Power Over Ethernet (PoE)Complies with IEEE 802.3af class 0 Power-over-Ethernet standard (PoE A or PoE B compatible)
- DC Power Supply1 x 12V 1.2A DC Power Supply
- Power ConsumptionPoE: 11.0W – DC: 13.32W (When using supplied DC PSU)
