With its 5” woofer the bass-frequency response of the T5V extends to 45 Hz. The new U-ART tweeter, a breakthrough solution for use in high-resolution recording and mixing on a budget, goes up to 25 kHz and is mated to a precision waveguide with the same dispersion-control attributes as the High Frequency Propagation (HPS) waveguide used in ADAM Audio’s flagship S Series monitors. The waveguide’s highly uniform dispersion of high frequencies provides an incredibly wide sweet spot that frees you from being glued to a rigid mix position while working.
A beveled cabinet with a rear-firing bass reflex port and a small footprint allows placement anywhere in your room, no matter how small, and contains built-in DSP-controlled driver crossovers and equalization as well as multi-way analog connections. Powered with a 50 W Class D amplifier for the woofer and a 20 W Class D amplifier for the U-ART tweeter, the T5V produces SPLs of up to 106 dB per pair.
Excellent acoustic characteristics, small dimensions and an outstanding cost/performance ratio make this studio monitor perfectly suited for use in small control rooms in music, video and broadcast production.
Key Features
- U-ART 1.9” Accelerated Ribbon Tweeter with HPS Waveguide
- Polypropylene 5” woofer and rear-firing bass-reflex port
- Total RMS Amp. Power: 70 W

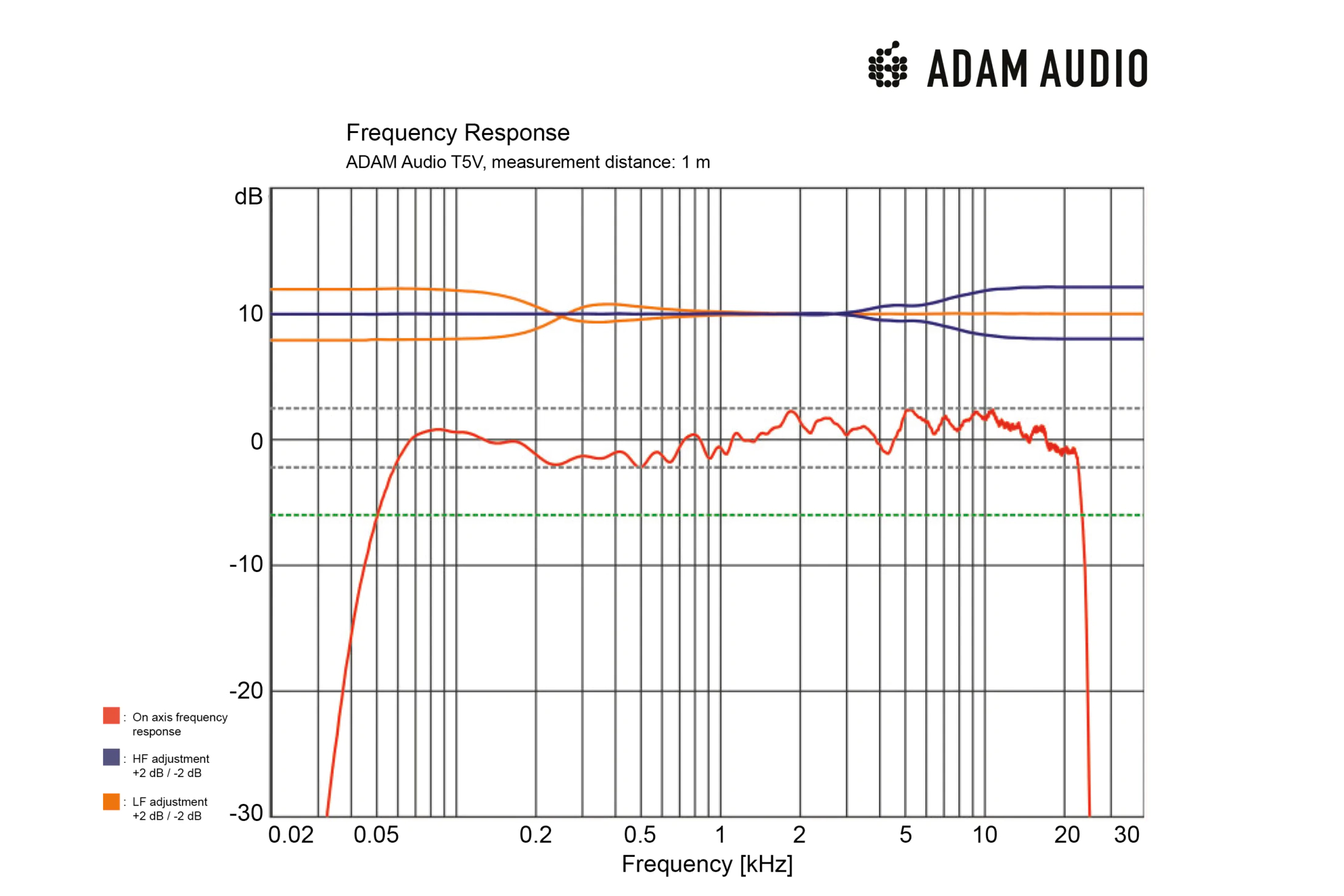

- Frequency Response: 45 Hz – 25 kHz (-6 dB)
- Max. SPL Per Pair at 1 m: ≥106 dB
Specifications
- Equipped with 5″ woofer and 1.9″ U-ART ribbon tweeter
- 2 Class D amplifiers: 50W RMS woofer, 20W RMS tweeter
- Frequency range: 45Hz to 25kHz
- Crossover frequency: 3 kHz
- Maximum input level: 106 dB (1m/pair)
- Rear bass reflex port
- Connections: XLR and RCA line inputs
- Dimensions (W x H x D): 179 x 298 x 297 mm
- Weight: 5.7 kg
